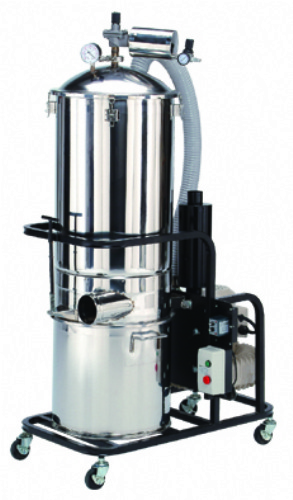

PULSED DUST COLLECTOR
Model: CS-102
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Dust Collectors
Characteristics
The main body is made from stainless steel 304, featuring long durability and easy to clean.
•Employ cyclonic centrifugal principle to suck powder or granule into bottom drum.
•The blower is applied for sucking air only. The sucked dusts do not directly contact with motor for increased service life of motor.
•For dry and wet applications, CS-1022, 1023 can be used as normal household vacuum cleanner.
•Allows for 24 hours operation.
•Suitable for poisonous or non-poisonous dusts such as graphite, fiber, food, carbon powder, aluminum powder, pesticide and medicine.
•Iron chips or copper chips can also be collected with maximum durability and easy cleaning.
•High pressure pulsated jet for automatically cleaning dusts existed in the center of filter core. Dusts are knocked off automatically, making it suitable for 24 hours operations.
• The innovative dust collector in Taiwan with automatically pulsated filter-core features silent operation without need to change filtering bag.
• The filter-core is manufactured from PET bellow type filtering element, providing greater filtering area. Applicable for any fine powder.
•Easy to clean by simply pulling out the pulling rod and remove the lower tank.
•Various motor horsepowers and specification to meet specific requirement.
•The filter-core allows for filtering powder of up to 0.1µm(micron) .
•Equipped with sound buffering device for reducing noise.
•Equipped with pressure gauge for clearly checking if any jamming occurs or not.
Specifications
MODEL |
CS-1021 |
|||||||||||
MOTOR HP | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | |||||
Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet port dia. Inch (optional) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | |||||
Static pressure mmAq | 270 | 320 | 380 | 400 | 600 | 500 | 650 | |||||
Dimensions CM (LxWxH) | 116 x 77 x 165 | 116 x 77 x 165 | 116 x 77 x 165 | 116 x 77 x 165 | 100 x 200 x 220 100 x 100 x 300 |
100 x 200 x 220 100 x 100 x 300 |
(By Drawing) | |||||
Air flow m3/min. (optional) | 18 | 22 | 40 | 45 | 48 | 75 | 80 | |||||
Noise level db | 65 | 70 | 75 | 80 | 85 | 85 | 85 | |||||
Volume L (optional) | 40 | 40 | 40 | 40 | 80 | 80 | 80 | |||||
Machine weight Kg | 74 | 81 | 88 | 109 | 298 | 320 | 600 | |||||
|
