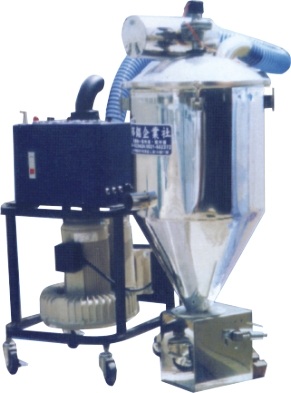

AUTOMATIC POWER VACUUM SUCTION
Model: CS-350
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
Custom design for delivery capacity and storing capacity are available.
•Maximum safety. The machine does not generate high temperature suitable for delivering various materials. Ideal for 24 hours running.
•Employs high pressure air jet for instantly knocking off dust without clogging.
•The machine employs PE plastic filter element making it suitable for viscous or non-viscous material.
•Easy to clean and change material.
•The machine is manufactured from SUS #304 material, featuring extreme smoothness on inside and outside surface. No dust adhering and easy cleaning.
•The top cover is equipped with quick retainer and fitted with silicon for tightness.
• The unloading valve is equipped with a material fullness sensor.
•Microprocessor control.
•Material suction nozzle and flexible hose.
•Suction inlet pipe and PVC soft pipe
•The machine specifications are subject to change.
•Material suction time and dwell time can be set as desired for added convenience of operation.
•Various motor horsepowers and specifications to meet specific requirements.
•The filter core is capable of filtrating powder of up to 01.µm(micron).
Specifications
MODEL |
CS-350 |
|||||||||||
MOTOR HP | 1 | 2 | 3 | 5 | 7 | 10 | 15 | |||||
Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet port dia. Inch (optional) | 2 | 2 | 2 | 2 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Capacity ( Kg / hr ) (optional) | 250-1000 | 250-1000 | 250-1000 | 250-1000 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Filtration Dimension Diameter x Height (mm) |
325 x 200 | 325 x 200 | 325 x 200 | 325 x 200 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
PET Filter (piece) | 1 | 1 | 1 | 1 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Static pressure mmAq | 1800 | 2500 | 2800 | 3500 | 3200 | 3400 | 3000 | |||||
Dimensions CM Diameter x Height (mm) (optional) |
Show as Fig. | Show as Fig. | Show as Fig. | Show as Fig. | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Air flow m3/min. | 2.2 | 4.5 | 6.2 | 8.3 | 9.5 | 11 | 24 | |||||
Noise level db | 60 | 65 | 65 | 67 | 74 | 74 | 76 | |||||
Volume L (optional) | 30 | 30 | 30 | 30 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Machine weight KG (With Motor) | 72 | 82 | 87 | 107 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
|
