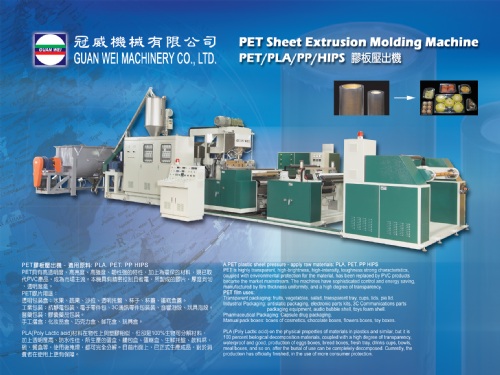

PET Sheet Extrusion Machine
Model: GWM-100PET
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PET Sheet Extruders
Characteristics
A PET plastic sheet pressure – apply raw materials: PLA, PET, PP HIPS
PET is highly transparent, high-brightness, high-intensity, toughness strong characteristics, coupled with environmental protection for the material, has been replaced by PVC products become the market mainstream. The machines have sophisticated control and energy saving, manufactured by film thickness uniformity, and a high degree of transparency.
PET film uses:
Transparent packaging: fruits, vegetables, salad, transparent tray, cups, lids, pie lid.
Industrial Packaging: antistatic packaging, electronic part kits, 3C Communication parts, packaging equipment, audio bubble shell, toys foam shell.
Pharmaceutical Packaging: Capsule drug packaging
Manual Pack Boxes: boxes of cosmetics, chocolate boxes, flowers boxes, toy boxes.
PLA (Poly Lactic Acid) on the physical properties of materials in plastics and similar, but it is 100% biological decomposition materials, coupled with a high degree of transparency, waterproof and good, production of egg boxes, bread boxes, fresh tray, drink cups, bowl meal boxes, and so on. After the burial of use can be completely decomposed. Currently, the production has officially finished, in the use of more consumer protection.
Specifications
Material: PET. PLA. HIPS
Sheet Thickness: 0.2~1.2mm
Sheet Width: 600mm
Line Speed: 5m/min~30m/min
Capacity: 250~450 kg/hr
Extruder: 1 set
Screw Diameter: 100mm(L/D = 36:1)
Cylinder: 100mm
Gear Box: 1 Set
Driving Motor: 175 HP
Metering Gear Pump: 1 Set
Twin Shaft Hydraulic Filter: 1 Set
Digital Pressure Controller: 350kg/cm2 * 2 sets + Themometer
Heating Capacity: 70 kw
T-Die: 1 set
Width: 1000mm
Cooling & Take-Off Unit: 1 set
Cooling Roller: 520mm x 1200mm x 2 pcs
Driving Motor: 5HP x 3 sets
Trimming & Coating System: 1 set
Coating Unit: 165mm x 1200mm x 3 pcs
Driving Motor: 5HP
Static Eliminator: 1 set
Edge Smash Machine: 1 set
Winding Unit: 1 set
Type: Two Shafts Center Winding
Winding Shaft: Air Shaft by Manual Type
Winder Diameter: 1000mm x 1100mm
Winding Motor: 7.5HP x 2 sets
Auto-Tension Control System: 1 set
Buyer Supply (Optional Equipment)
Infrared Rotary Dryer/Crystallizer: 1 set
Dryer or Dehumidify Dryer: 1 set
Chill Machine By Water with Cooling Tank: 1 set
Mixer: 1 set
