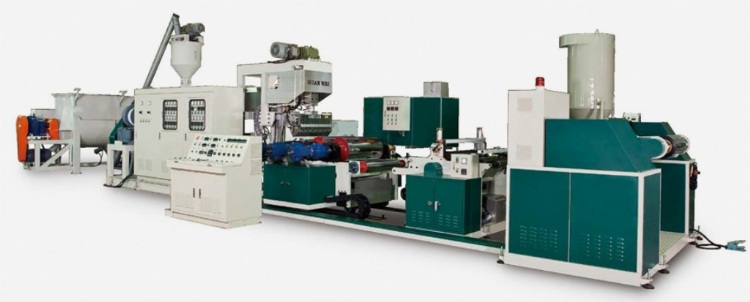

PET Sheet Extrusion Machine
Model: GWM-100PET
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Extruders
Characteristics
High Efficiency. High Throughput. Extra Low Power Consumption! Unique Design! Recognized Performance!
Based on the extensive experience,Guan Wei carefully build PET Sheet Extruding Machine!
1.High Efficiency. High Throughput：
•Applicable for 100% crushed PET chip material.
•Maximum production rate：400 kg/hr.
2.Extra Low Power Consumption：
•During normal operation,the power consumption for the entire production line is less than 15kw per hour.
3.Unique Design：
.The PET Sheet Extruding Machine from Guan Wei integrates unique extra high performance,which allows the system free from using heavy
duty dehumidifier,or go for high deploys special designed screw and barrel,with super precision cooling molding system plus stable winding
unit,features high production efficiency and low operation cost.
Specifications
| 【Model】 GWM-E100PEL 【Sheet Sizes】 1,050 mm(W) 0.10~0.60 mm(T) 【Production Rate】 200~400kg/hr --------------------------------------------------- 【Model】 GWM-S100PEL 【Sheet Sizes】 750 mm(W) 0.30~1.60 mm(T) 【Production Rate】 300~450kg/hr --------------------------------------------------- Recognized Performance:Excellence Through User`s Witness! Production rates shown in below table are provided by users. |
| Specifications : GWM-E100PET Material: PET Sheet Thickness: 0.10 ~ 0.60mm Sheet Width: 1050mm Line Speed: 10~40m/min Capacity: PET 200~400 kg/hr Screw Diameter: ø100mm(L/D = 34:1) Driving Motor: AC 150 HP GWM-S100PET Material: PET Sheet Thickness: 0.30 ~ 1.30mm Sheet Width: 750mm Line Speed: 2~20m/min Capacity: PET 300~400 kg/hr Screw Diameter: ø100mm(L/D = 34:1) Driving Motor: AC 150 HP |
