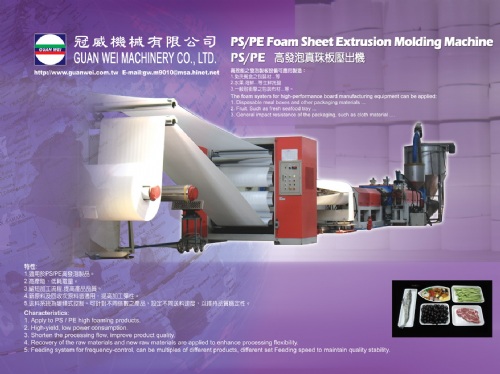

PS / PE Foamed Sheet Extrusion Machine
Model: GWM-120/150 PS
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PET Sheet Extruders
Characteristics
1. Apply to PS/PE high foaming products.
2. High-yield, low power consumption
3. Shorten the processing flow, improve product quality.
4. Recovery of the raw materials and new raw materials are applied to enhance processing flexibility.
5. Feeding system for frequency-control can be multiples of different products,and different set feeding speed to maintain quality stability.
Foam System for high-performance board manufacturing equipment can be applied to:
1. Disposable meal boxes and other packaging materials.
2. Fruit, and fresh seafood trays.
3. General impact resistance of the packaging, such as cloth materials.
Specifications
Raw Material: Polystyrene
Sheet Thickness: 1~3mm (Standard Size)
Sheet Width: 1100mm x 2 (After Cutting)
Foam Ratio: 8~14
Capacity: 350~450 kg/hr
Line Speed: 5~30 m/min
Extruder: 2 Set
Screw Diameter: 120mm/150mm
Screw L/D ratio: 26/24
Driving Motor: 200HP/175HP
Pressure Gauge: 350 kg/cm^2 x 2 set
Heating Capacity: 52kw + 78kw
Temp. Control: 6 Zone + 6 Zone
Cooling System: Air & Water
Foaming Unit: 1 Set
Type: High-Pressure Pump
Foam Agent: L.P Gas (Butane)
Driving Motor: 7.5HP x 1 set
Setting & Cutting Unit: 1 set
Take-Off Unit: 1 set
Driving Motor: 5HP
Roller Diameter & Width: 310mm x (w)1300 mm 4 Pieces.
Take-Up Unit: 2 Set
Driving Motor: 1 kg/m Torque Motor x 2
Control Panel: Independent Type x 1 set
Buyer Supply (Optional Equipment)
Water Cooling Tank: 20 Tons x 1 set
Raw Material Mixer: 1 Ton x 1 set
Screw Conveyor: 2HP x 1 set
Air Compressor: 40 Tons x 1 set
Chill Dryer by Air: 40 Tons x 1 set
Retain Pressure Tank: 660L x 1 set.
Gas Supply System (Butane): Provided by Taiwan Standard.
