HDPE/LDPE Film Blowing Machine Unit

Enlarge

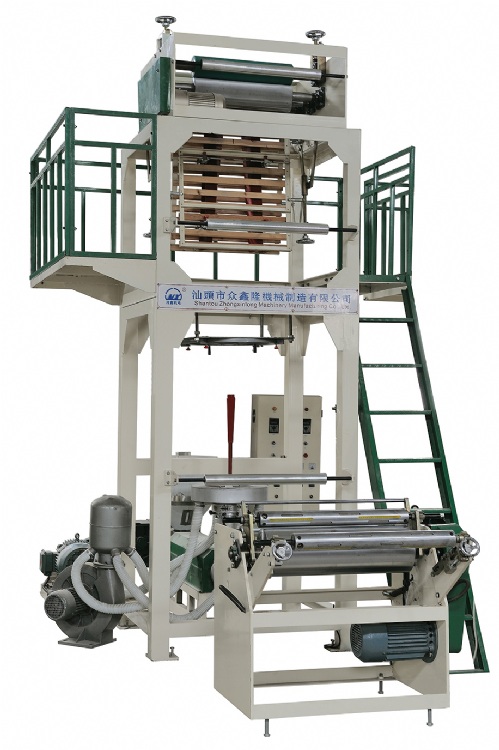

HDPE/LDPE Film Blowing Machine Unit

Model: MXCM-700-1200

Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)

Online Inquiry

Characteristics

Features
*HDPE/LDPE film blowing machine unit used to blow various plastic films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE).
*The films can be widely applied to packaging for industrial products, textiles, apparel and food and agricultural coverage.
*The cylinders and screw rods of extruders in mentioned models are all made from high-quality alloy steel through precision machining and nitriding, so as to ensure optimal hardness and corrosion resistance.
*Platform rail worktable to be operated more conveniently.
*The rolling device adopts torque motor to keep suitable tension, orderly rolling and convenient to change the roll.

Limited showing in websibe. If you need any other kind of machine. Welcome to contact Eva Chen. Email: [email protected]

Specifications

主要技术参数/Main Technical Parameters：

型号	Model	MXCM-700	MXCM-800	MXCM-1000	MXCM-1200
螺杆直径	Screw diameter(mm)	Φ45	Φ55	Φ60	Φ65
螺杆长径比	Screw L/D Ratio	28:1	28:1	28:1	28:1
螺杆转速	Screw rotation	10-100r/min	10-100r/min	10-100r/min	10-100r/min
主机功率	Power of main motor(kw)	11	15	18.5	22
最大挤出量	Max.Extrude Output	40kg/h	50kg/h	65kg/h	76kg/h
薄膜厚度单面	Single-face Thickess of film(mm)	0.008-0.10	0.008-0.10	0.01-0.10	0.01-0.10
薄膜最大折径	Max Film Folding Dia(mm)	600	800	1000	1200
总功率	Total Power(KW)	18	22	28	32
机器重量	Machine of weight(T)	2.8	3.2	3.8	4.6
外形尺寸（长×宽×高）	Overall Dimension（L×W×H）	4.2×1.8×3.6	4.4×2×3.8	4.6×2.3×4.5	4.8×2.5×4.8
型号	Model	MXCM-1500	MXCM-2000	MXCM-2500	MXCM-3000
螺杆直径	Screw diameter(mm)	Φ75	Φ100	Φ110	Φ120
螺杆长径比	Screw L/D Ratio	28:1	28:1	28:1	28:1
螺杆转速	Screw rotation	10-100r/min	10-100r/min	10-100r/min	10-100r/min
主机功率	Power of main motor(kw)	30	55	75	90
最大挤出量	Max.Extrude Output	86kg/h	160kg/h	180kg/h	220kg/h
薄膜厚度单面	Single-face Thickess of film(mm)	0.01-0.10	0.02-0.10	0.02-0.10	0.02-0.10
薄膜最大折径	Max Film Folding Dia(mm).	1500	2000	2500	3000
总功率	Total Power(kw)	52	80	110	130
机器重量	Machine of weight(Kg)	5.6	7	9.6	11
外形尺寸	Overall Dimension L×W×H(M)	6×2.9×6.2	8×3.5×8	9×4.2×9.6	10×4.6×11

※資料如有更改，恕不另行通知。Design and specifications are subject to change without notice.
