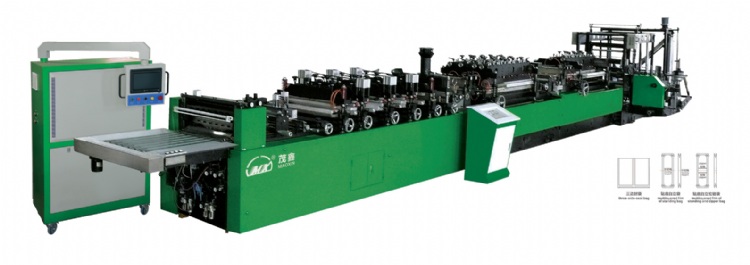

Fully Automatic Bag Making Matchine For Three-Side Seal,Standing and Zipper
Model: MXZD
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
Features
It adopts tri-servo motor location system controlled by computer, main motor frequency converter speed control, double photocell eyes automatic correction in material feeding device.
Automatic back feeding by frequency conversion. Vertical type folding device , it can automatic feeding the material.
Equipped with removable fixed cutter, can minitrim the front ,rear, slope position of the cutter. It is equipped with splitting device for multi-row & double -side bags, material Vwinding conveying device. It can automatically count the batch and amount, eliminate static and dispose the material edge. its pressed roller and its tension both adopt pneumatic control.
It has the function of multiple conveying, high-position stop, misplacement trailing stop and alarm stop for out of material. It features in high precision, fast speed, regular and beautiful bag making, so it is the ideal equipment for manufacture of laminatedplastic bag.
Specifications
Main Technical ParametersG
号Model |
MXZD-400 |
MXZD-500 |
MXZD-600 |
Material |
U`Xƽ All Kinds Of Laminated Plastic Film |
||
Ƥؤo]̤j^Material size(maximum) |
840xφ600min |
1040xφ600min |
1240xφ600min |
ƫp Film Thickness |
0.04-0.18mm |
0.04-0.18mm |
0.04-0.18mm |
ʤt Speed Of Sealing & cutting |
40-150pcs/min |
40-150pcs/min |
40-150pcs/min |
̰线t Maximum Linear Speed |
35m/min |
35m/min |
35m/min |
U数 Rows Of Bag Making |
1-3 1-3 Row |
1-4 1-4 Row |
1-5 1-5 Row |
e Multiple Conveying |
W过320mm]ۥߡB链Ue^ Over320mm (the bag of Standing and Zipper without double sending) |
||
\v Power Of Whole Machine |
约35kw About 35kw |
约44kw About 44kw |
约54kw About 54kw |
t统 Control System |
PLCt统Τut统 PLC Control System Or Industry Control System |
||
牵 Material Driving Mechanism |
TA电牵ިt统 Tri-servomotor Driving System |
||
ƨt统 Material –feeding System |
动W装mAK[ Automatic feeding the material device ,shape rack |
||
动装m Brake Device |
张O编码ϯt统 Constant tension encoder Magnetic-power control system |
||
温t统 Temperature Control System |
内mPIDΥ~mPID Internal Structure PID OR External Structure PID |
Design and specifications are subject to change without notice.
