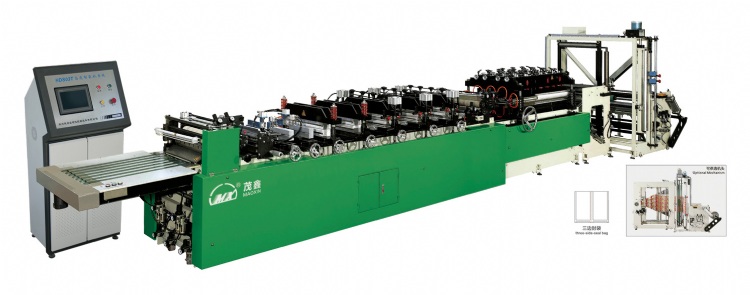

Three-side Seal Bag Making Machine
Model: MXZD
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Automatic Three-Side-Sealing Bag Making Machines
Characteristics
Features
It adopts tri-servo motor location system controlled by computer, main motor frequency converter speed control, double photocell eyes automatic correction in material feeding device. Automatic back feeding by frequency conversion. Vertical type folding device , it can automatic feeding the material. Equipped with removable fixed cutter, can minitrim the front ,rear, slope position of the cutter. It is equipped with splitting device for multi-row & double -side bags, material Vwinding conveying device. It can automatically count the batch and amount, eliminate static and dispose the material edge. its pressed roller and its tension both adopt pneumatic control. It has the function of multiple conveying, high-position stop, misplacement trailing stop and alarm stop for out of material. It features in high precision, fast speed, regular and beautiful bag making, so it is the ideal equipment for manufacture of laminated plastic bag.
Specifications
Main Technical ParametersGG
号Model |
MXZD-400 |
MXZD-500 |
MXZD-600 |
Material |
U`Xƽ All Kinds Of Laminated Plastic Film |
||
Ƥؤo(̤j^Material size (max) |
840xφ600min |
1040xφ600min |
1240xφ600min |
ƫpFilm Thickness |
0.04-0.18mm |
0.04-0.18mm |
0.04-0.18mm |
ʤtSpeed Of Sealing & cutting |
40-180pcs/min |
40-180pcs/min |
40-180pcs/min |
U数 Rows Of Bag Making |
1-2 1-2 Row |
1-31-3 Row |
1-41-4 Row |
̰线tMaximum Linear Speed |
40m/min |
40 m/min |
40m/min |
eMultiple Conveying |
W过380mm Over 380mm |
W过380mm Over 380mm |
W过380mm Over 380mm |
\v Multiple Conveying |
约28kw About28kw |
约36kw About36kw |
约45kw About45kw |
t统Control System |
PLCt统Τut统 PLC Control System Or Industry Control System |
||
牵Material Driving Mechanism |
TA电牵ިt统 Tri-servomotor Driving System |
||
ƨt统Material–feeding System |
动W装mAK[ Automatic feeding the material device ,shape rack |
||
动装mBrake Device |
张O编码ϯt统 Constant tension encoderAMagnetic-power control system |
||
温t统Temperature Control System |
内mPIDΥ~m PID Internal Structure PID OR External Structure PID |
Design and specifications are subject to change without notice.
