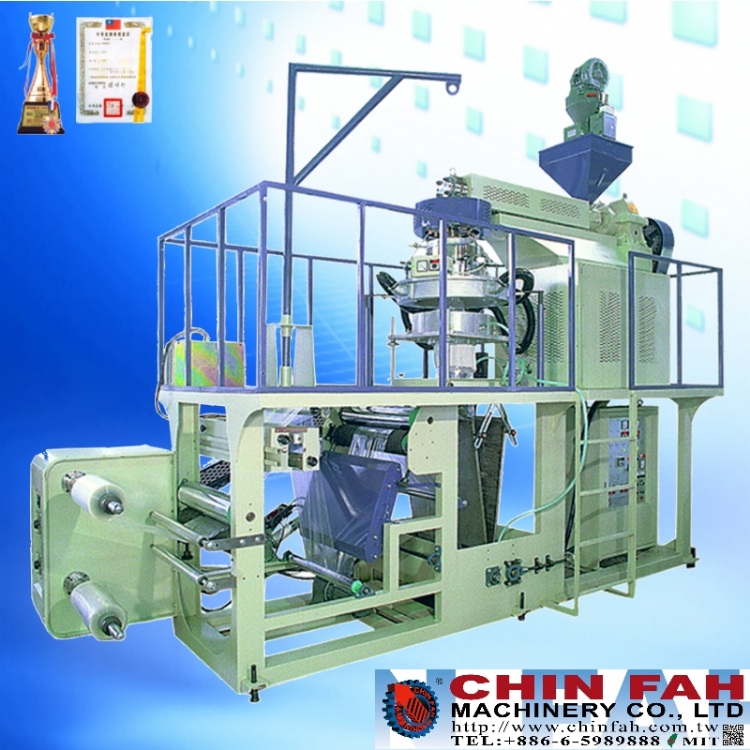

PP Blown Film Machine
Model: PP series
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Extruders
Characteristics
1. Special design of the screw, high output, homo-geneous mixing excellent
quality.
2. Whole consideration & optimum design, easy for operating and maintenance.
3. Standardize spare parts, easy to be replaced and easy to equip accessories,
such as auto loader, surface static treater(corona) or rotating die device, and
etc.
Specifications
Video:
https://www.youtube.com/watch?v=dPP6i-6mgWA
1. Special design of the screw, high output, homo-geneous mixing excellent
quality.
2. Whole consideration & optimum design, easy for operating and maintenance.
3. Standardize spare parts, easy to be replaced and easy to equip accessories,
such as auto loader, surface static treater(corona) or rotating die device, and
etc.
- Winder: manuel two shaft type, equip with two high quality torque motors with stable torque output and adjustable winding speed.
- Rotary Die: no material Leakage warranty!!!Special design of the rotating die device gives the product with even and beautiful surface. Applying high quality source connection parts, no current leakage, safety and easy for assembly.
- Control panel: Equipped with high quality international standard electrical parts; More accuracy, easy to read and easy to operate.
Optional equipment:
- Auto loader
- Dryer
- Surface static treater(Corona)
- Rotating Die
- Back to back(double)winder
| Model | YF-PP-45 | YF-PP-55 | YF-PP-65 | YF-PP-80 |
| Main Product | Polypropylene Tubular Film | |||
| Thickness | 0.02mm~0.06mm | |||
| Width of film(mm) | 100~450 | 300-600 | 400-700 | 500-1000 |
| Productivity(kg/hr) | 25~35 | 30~50 | 45~65 | 80~100 |
| Extruder | Down ward extrusion type | |||
| Screw Diameter | 45mm | 55mm | 65mm | 80mm |
| Pinch Roller width | 500mm | 750mm | 915mm | 1100mm |
All Specification and pictures above are for reference only.
If you need more information, please feel free to contact us.
