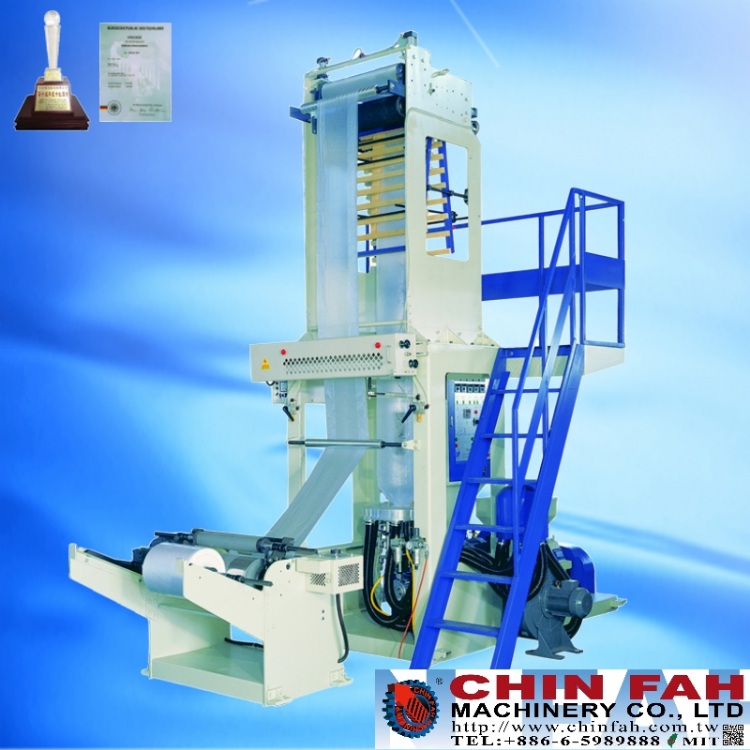

tubular film machine, HB series
Model: YF-HB series
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Inflation Tubular Film Making Machines
Characteristics
1. Suitable for making HDPE/LDPE tubular film.
2. Screw and barrel have special surface treatment, wear-resisting, perfect mixing effect, with high capacity.
3. Screw range from 45mm-60mm.
4. Gear face ground has been processed by computer digital controlled and inspected.
5. Elevator up and down type.
6. Complete function and outstanding performance, high product quality.
Specifications
Video:
https://www.youtube.com/watch?v=3iIdcFuhaiQ
- Suitable for making HDPE/LDPE tubular film.
- Screw and barrel have special surface treatment, wear-resisting, perfect mixing effect, with high capacity.
- Screw range from 45mm-60mm.
- Gear face ground has been processed by computer digital controlled and inspected.
- Elevator up and down type.
- Complete function and outstanding performance, high product quality.
- Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
- Take up unit: With adjustable height take up tower and pheumatic pinch roller device.
- Surface Winder:Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.
Optional Euipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater(corona)
- Embossing roller
- Air shaft
- Back to back(double) winder
| Model | YF-HB-40 | YF-HB-45 | YF-HB-52 | YF-HB-55 |
| Production | HDPE/LDPE/LLDPE Inflation Tubular Film | |||
| Film Thickness | HDPE: 0.008-0.10 MM LDPE / LLDPE: 0.01-0.20 MM. | |||
| Film Width | 400MM | 650MM | 800MM | 900MM |
| Max. Extrusion Output | 35 KG/HR | 55 KG/HR | 65 KG/HR | 75 KG/HR |
| Type of Extruder | Low Base Type | |||
| Screw Diameter | 40mm | 45mm | 52mm | 55mm |
| Roller width | 500mm | 750mm | 850mm | 1000mm |
All Specification and pictures above are for reference only.
If you need more information, please feel free to contact us.
