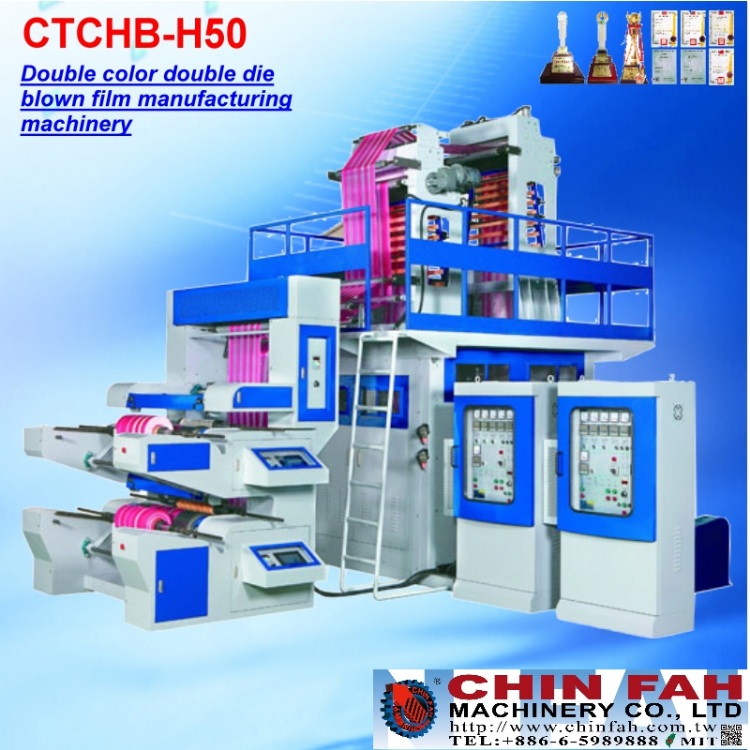

plastic blown film machine, double color double die type, CTCHB-H series
Model: YF-CTCHB-H series
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Inflation Tubular Film Making Machines
Characteristics
1. User-friendly interface to operate.
2. Under CE Machinery Directive in August, 1999 to ensure the product security for the users.
3. ChinFah machine use SCR and inverter control, provide with energy saving device that
normal machine do not offer.
4. Chin Fah Machine not only can process two color strips ,but also can change die head to
process two layers films and three layers ABA type films, in order to reach customer
multiple use with one machine’s demand.
5. Clear two color strips and high quality film.
6. High-efficiency 2-in-1 way, combine two-machine function into one machine, save 30%space,save over 50% power and save 20% budget.
7. Chin Fah Machine have special design of up and down full automatic type winder and controlled by PLC computer type,not only save the space and make humanized operation, safe is certain.
Specifications
Video:
https://www.youtube.com/watch?v=WQUHNjfKTj0
- User-friendly interface to operate.
- Under CE Machinery Directive in August, 1999 to ensure the product security for the users.
- ChinFah machine use SCR and inverter control, provide with energy saving device that
normal machine do not offer. - Chin Fah Machine not only can process two color strips ,but also can change die head to
process two layers films and three layers ABA type films, in order to reach customer
multiple use with one machine’s demand. - Clear two color strips and high quality film.
- High-efficiency 2-in-1 way, combine two-machine function into one machine, save 30%space,save over 50% power and save 20% budget.
- Chin Fah Machine have special design of up and down full automatic type winder and controlled by PLC computer type,not only save the space and make humanized operation, safe is certain.
- Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
- Take up unit: With adjustable height take up tower and pheumatic pinch roller device.
- Surface Winder: Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.
Optional Euipment
- Auto loader
- Film width controller
- Meter counter
- Surface static treater(corona)
- Embossing roller
- Air shaft
| Model | YF-CTCHB-H50(TWO COLOR) |
| Production | HDPE Inflation Tubular Film |
| Film Thickness | 0.02-0.20MM |
| Film Width | 550MM |
| Extrusion Output | 75-80 KG/HR |
| Screw Diameter | 50mm |
| Roller Width | 650mm |
All Specification and pictures above are for reference only.
If you need more information, please feel free to contact us.
