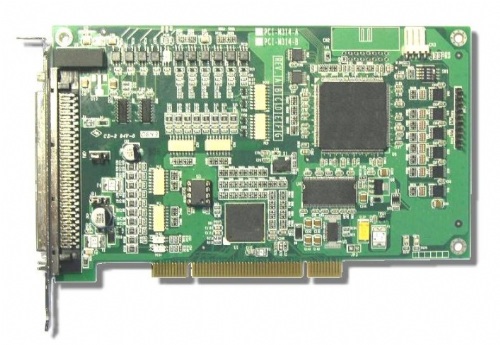

Advanced PCI Master Card with 4-Axes Motion Control Card
Model: PCI-M314A1/B1
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
•Max. 3.2MHz, 4-Axes pulse output
•Linear, circular ,Helix and continuous interpolation
•High speed position latch function
•Simultaneously start/stop on multiple axes
•Programmable acceleration and deceleration time
•Programmable pulse output and interrupt
•Position compare and trigger output
•SCSI 100pins connector interface
Specifications
Motion Control
•Pulse output mode: OUT/DIR, CW/CCW ,AB Phase
•Pulse output rate: Max. 3.2Mpps
•Position range: 32bits(± 2147483648 pulses)
•Home return mode: 6 types
•Velocity profiles: T-curve, S-curve
•Interpolation mode: linear, circular , Helix and continuous
•Counter for encoder feedback signals: 32bits up/down x 4
•Position latch input: LTC x 4
•Position compare output: CMP x 2
•Incremental encoder input: ±EA x 4, ±EB x 4
•Encoder index signal input: ±EZ x 4
•Machine interface: PEL x 4, MEL x 4, ORG x 4, SLD x 4
•Servo driver interface: ALM x 4, RDY x 4, SVON x 4, INP x 4, ERC x 4
•General input: IN x 4
•General output: OUT x 4
•I/O pin type: optically isolated with 2.5KVrms on SCSI 100 pins
General
•PCI Spec. 2.2; supports 32-bit, 3.3V/5V DC operation
•Power consumption: +5V DC at 1A typical
•Working temperature: 0 to 60℃
