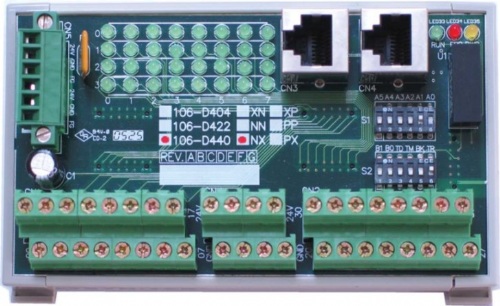

Screw Terminal Motion.NET Digital Input/Output Slave Module
Model: 106-D440/D422/D404
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
¡EDIN rail mounting (L-124 x W-72 x H-53 mm)ƒå
¡EMax. 20Mbps transfer rate
¡ETerminal board for actuator/sensor
¡EEasy installation with RJ45 phone jack and LED diagnostic
Specifications
¡ESerial interface: half duplex RS-485 with transformer isolation
¡ECable type: CAT5 UTP/STP Ethernet cable
¡ESurge protection: 10KV
¡ETransmission speed: 2.5Mbps, 5Mbps, 10Mbps and 20Mbps
¡EOn-line module insertion and removal
¡EIO isolation voltage: 2.5KVrms
¡EInput impedance: 5.6KΩ/0.5W, Input current: ±5mA(Max)
¡EOutput types: NPN/PNP open collector Darlington transistors
¡ESwitch capacity: each output channel is 60mA at 24V DC
¡EResponse time: On to Off, about 180μs; Off to On, about 1.2μs
¡EPower supply: +18V DC to +30V DC, consumption: 3W typical
¡EWorking temperature: 0 to 60¢J
¡E106-D440-NX
32-CH digital input with NPN
¡E106-D422-NN
16-CH / 16-CH digital input / output, NPN input / output
¡E106-D404-XN
32-CH digital output with NPN
