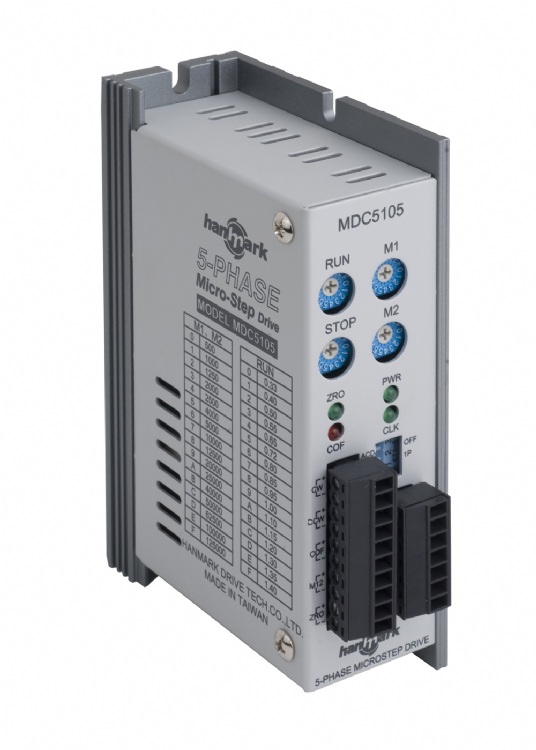

5-phase Stepper Motor Driver
Model: MDC5100/MDC5105/MDC5108
Category: Machinery Parts and Components / Machinery Parts and Components / Motors
Characteristics
¡¯Use DC18~40V input power.
¡¯Max. phase current 1.4A(MDC5100,MAC5105) / 2.8A(MDC5108)
¡¯Driving method is bi-polar constant current.
¡¯Match 5 phase stepping motor of 5 or 10 lead wires.
¡¯Resolution upto 125,000 step per revolution.
¡¯Motor low noise, smooth operation.
¡¯Motor temperature rise is low, low vibration.
¡¯High-speed CPLD device design, improve product stability.
¡¯Smooth damping function lower the motor vibtation."
Specifications
¡¯Power: DC 18V~40V@4A
¡¯Drive current: 0.5A~1.4A(MDC5100,MAC5105) / 1.0A~2.8A(MDC5108)
¡¯Resolution:
500,1000,1250,2000,2500,4000,5000,10000,12500,20000,25000,40000,50000,62500,100000,125000
¡¯Control mode: Single-pulse(1P), two-pulse(2P)
¡¯Auto-current-down: 30~70%
¡¯Max pulse speed: 500K Hz
¡¯Pulse width: 2us(Min)
¡¯Direction response: 10us(Min)
¡¯Input signal: +4~+10V, <20mA
¡¯input signal impedance: 220Ω
¡¯Output signal: Open collector, 24V, 10mA(Max)
¡¯Noise isolation: Use of photo coupler
¡¯Ambient temperature: 0~+40¢J
¡¯Ambient moisture: <85%RH
¡¯Dimension (LxWxH): 105*85*36 mm
¡¯Weight: 235g(MDC5100)¡B297g(MDC5105)¡B350(MDC5108)
