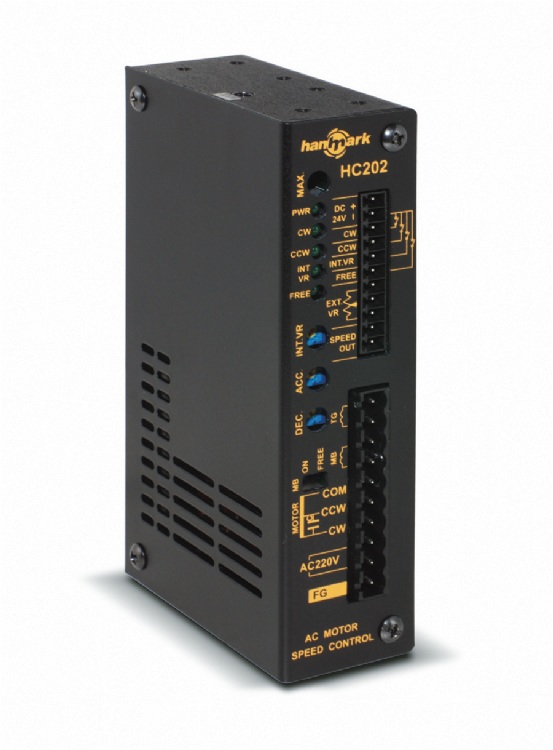

AC motor speed controller
Model: HC201/HC202
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
¡¯Suitable for the speed control on mini AC induction motors.
¡¯Small signal input (No relay or switch contact--No-Linkage required)
¡¯No-linkage abrupt stop.
¡¯No-linkage forward/reverse rotation.
¡¯No-linkage speed shift internally and externally.
¡¯Available used to braking motors.
¡¯Available to make settings for slow start and slow stop modes and separately adjustable.
¡¯Removable wiring terminal design with convenient for assembly or remove.
¡¯The input terminal is designed with the photo couplers to avoid the disturbance caused by noise.
¡¯LED display for various operating situations.
¡¯Available for 6W~90W motor.
Specifications
¡¯Power input: Single-phase AC 110V+/-10%, 50/60Hz (HC201)
¡¯AC 220V+/-10%, 50/60Hz (HC202)
¡¯Control Power: DC 24V+/-10%, 0.1A above
¡¯Output current: 3.0A
¡¯Watt: Under 90W
¡¯Input signal: CW, CCW, FREE, INT VR
¡¯Adjustion speed method: Variable resistor 20K
¡¯Adjustion speed voltage: 0~5V
¡¯Adjustion speed range: 50Hz: 90~1400r/min. 60Hz: 90~1600r/min.
¡¯Ambient temperature: 0 ~ +40¢J
¡¯Ambient moisture: < 85% RH
¡¯Dimension (mm): 136(L) x 76(W) x 36(H)
