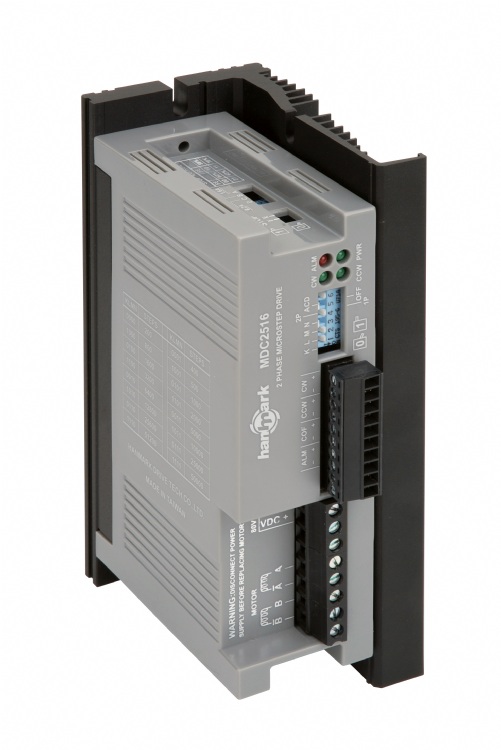

2 Phase Micro Stepping Motor Driver
Model: MDC2516
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
＊Low vibration, high resolution, suitable for smoothly applications.
＊Max phases current 4.0 Amps.
＊Driving method is bi-polar constant current, match 2 phase step motor of 4, 6 & 8 lead wires.
＊Resolution up to 51,200 steps per revolution.
＊External current off (COF) function.
＊Alarm (ALM) output signal function.
Specifications
＊Power：DC18V ~ 80V @4A
＊Drive current：0.5A ~ 4A/phase
＊Resolution：200,400,500,800,1000,1600,2000,3200,5000,6400,10000,12800,25000,25600,50000,51200
＊Control mode：Single-pulse(1P), two-pulse(2P)
＊Auto-current-down：7~60%
＊Max pulse speed：500KHz
＊Pulse width：2us(Min)
＊Direction response：10us(Min)
＊Input signal：+4 ~ +10V, <20mA
＊Input signal impedance：220 ohm
＊Output signal：Open collector, 24V, 10mA(Max)
＊Noise isolation：Use of photo coupler
＊Ambient temperature：0~+40℃
＊Ambient moisture：<85%RH
＊Dimension(mm)：153.5(L) x 91(W) x 56(H)
＊Weight：660g
