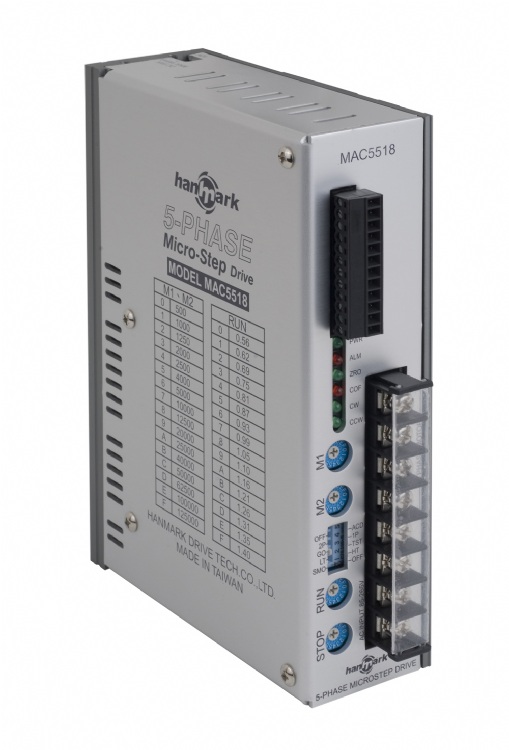

5-phase stepping motor driver
Model: MAC5518/MAC5528
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
¡¯AC85V~265V power input.
¡¯Suitable for high-speed high torque applications.
¡¯Can select from 16 driving current adjustments, reaching highest reading of 1.4A per phase.
¡¯Resolution upto 125,000 step per revolution.
¡¯Motor low noise, smooth operation.
¡¯Provide two methods of pulse input; Single-pulse (1P) and two-pulse (2P).
¡¯Can adjust running current and stop current for optimal motor revolving performance.
¡¯Overheating protection and output, can be used with external control.
¡¯Automatic current-down function for reduced motor heat.
¡¯Step zero output, and motor current off(COF) functions, can be used for external control.
¡¯High speed CPLD component design, enhances stability of product.
¡¯Drive current using soft-up method to prevent sudden burn-out of driver.
¡¯LED displays revolving status.
¡¯Special design of large aluminum alloy extrusion heat sink body."
Specifications
¡¯Power¡GAC85V ~ 265V, 50/60Hz
¡¯Drive current¡G0.5A ~ 1.4A (MAC5518)¡B1.0A~2.8A(MAC5528)
¡¯Driving method¡GConstant current bridge driver
¡¯Resolution¡G500,1000,1250,2000,2500,4000,5000,10000,12500,20000,25000,40000,50000,62500,100000,125000
¡¯Control mode¡GSingle-pulse(1P), two-pulse(2P)
¡¯Auto-current-down¡G30~70%(16 Multi-scale current control)
¡¯Max pulse speed¡G500KHz
¡¯Pulse width¡G5us(Min)
¡¯Direction response¡G10us(Min)
¡¯Input signal¡G+4 ~ +10V, <20mA
¡¯Input signal impedance¡G220 Ω
¡¯Output signal¡GOpen collector, 24V, 10mA(Max)
¡¯Noise isolation¡GUse of photo coupler
¡¯Ambient temperature¡G0 ~ +40¢J
¡¯Ambient moisture¡G<85%RH
¡¯Dimension(mm)¡GMAC5518-175(L) x 119(W) x 45(H) ¡BMAC5528-199(L) x 121W) x70H)
¡¯Weight¡G975g(MAC5518)¡B1190g(MAC5528)
