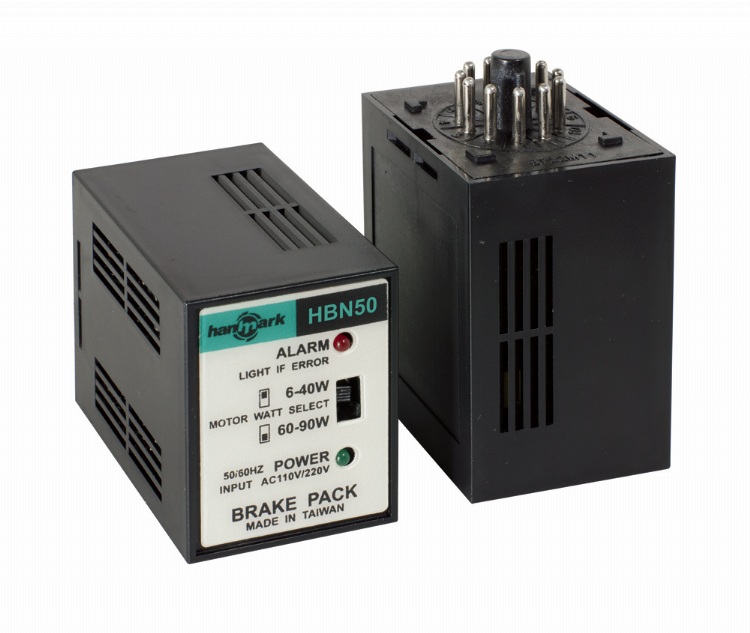

AC motor brake
Model: HBN50/HBR30
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
Current capacity at 3A.
High impact & intensive current output.
Braking duration roughly rated 0.4 sec.
Electronic braking systems to ensure less abrasion.
It is the product with the most suitability for the applications
with highly frequent braking motions on motors.
If abrupt stop function is used, the brake can entirely
stop the motor within 0.1 sec. (No loading)
Compatible with AC motors made byvarious makers."
Specifications
Power input: Single-phase AC 110V/220V+/-10%, 50/60Hz
Current: Under 3.0A
Brake time: Approx. 0.4 sec
Ambient temperature: 0 ~ +40J
Ambient moisture: < 85% RH
Dimension (mm): 50(L) x 40(W) x 77(H)
