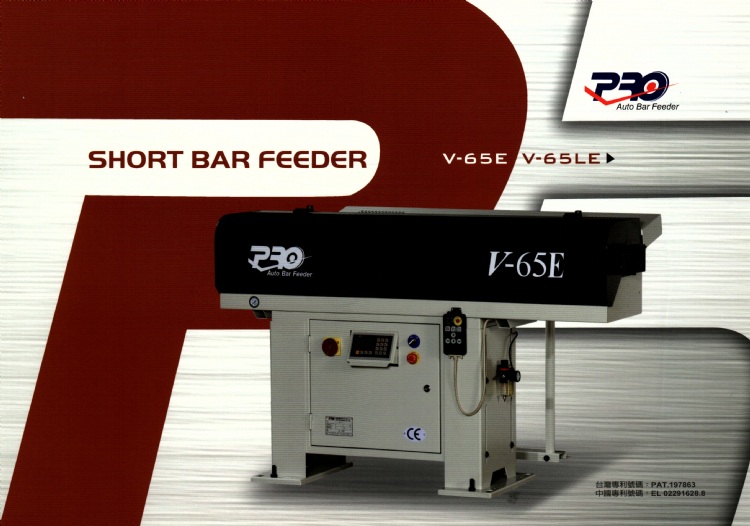

SHORT BAR FEEDER
Model: V-65E
Category: Machine Tools / Others / Other Machinery
Characteristics
Bar Diameter Φ 5.0mm∼Φ 65mm
.High Loading Speed, Specially Developed Design
. No special requirements or restrictions on material straightness.
. Material rotates within machining area and spindle length of lathe.
. Lathe spindle speed can be maximized.
. Material can be round, hexagonal and shaped.
. Material length can be uniform or random.
. Operating and maintaining easily.
. Small footprint
Specifications
| Model | V-65E | V-65LE |
| Diameter of Bar | Φ13/64"~Φ2-9/16" | Φ5mm~Φ65mm |
| Length of Bar | max.48"/1200mm | max.60"/1500mm |
| Spindle Height | 36-7/32"~51-1/8" | 920mm~1300mm |
