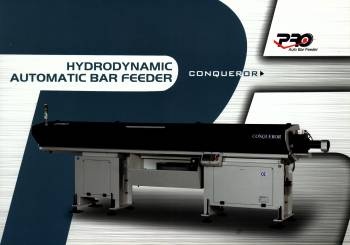

HYDRODYNAMIC AUTOMATIC BAR FEEDER
Model: CONQUEROR-551
Category: Machine Tools / Others / Other Machinery
Characteristics
Bar Diameter X 5.0mmX 51mm
. Hydraulic type, high rotation loading and ensures silent turning.
. Various parameter settings, alarm detection and function display.
. Employs Mitsubishi AC servomotor to drive.
. Adopts PLC control circuit featuring excellent stability and easy
operation.
. High-density steel structure ensuring rigidity and durability.
. Machanical synchronized device fits sliding headstock CNC lathe and
assures fast and stable feeding.
. Quick-change guide channel easy and convenient to change.
Specifications
Bar Diameter |
|
|||
|
||||
Channel Size | 13/17/21/26/28/33/36/38/39/43/46/52 | |||
Bar Loading Capacity | 305mm ø10mm x 30(bar) | |||
Oil Tank Capacity/Oil Spec | 60(L)/ISO CB 150 | |||
Oil Tank Capacity/ Oil Spec Power Supply |
3Phase 200~240VAC 10A 50/60HZ | |||
Air Supply | 5-7 kg/cm2 |
