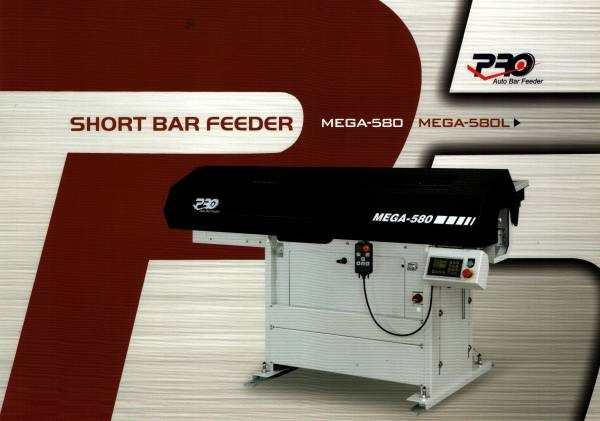

SHORT BAR FEEDER
Model: MEGA-580
Category: Machine Tools / Others / Other Machinery
Characteristics
Bar Diameter Φ 5.0mm∼Φ 80mm
. Mitsubishi servomotor and PLC.
. All settings are keyed in on the screen.
. Adjustable faceplate conforms to operator use.
. Easy to operate by remote control.
. Various feeding torques can be applied for different diameters of material,
weights and lengths to avoid distort the bar.
. Manual positioning to the spindle center by easy adjustment.
Material size is also ajustable.
. Soft and quietly deliver material to the V-tray by design with rotary movement .
. Easy to change spindle linear and maintain by optional sliding rail device.
Specifications
| Model |
Mega-580
|
Mega-580 L
|
| Diameter of Bar |
φ5mm ~ φ80mm
|
|
| Length of Bar |
max. 1240mm
|
max. 1640mm
|
|
Bar length depends on spindle length.
|
||
| Spindle Height |
895-1135 mm
(1045-1285 mm, optional)
|
|
| Magazine Capacity |
Total length 630mm for 7 bars of φ80mm
|
|
| Weight |
360 kgs
|
410 kgs
|
| Power Supply |
Input:1 Phase 200~240V AC 50/60 HZ
Output: DC 24V 10A |
|
|
Pusher Rods
(2-Standard)
|
10mm, 18 mm
(6mm pushbar for optional),
Storage brackets for reserve 2 pushers are under machine hood
|
|
