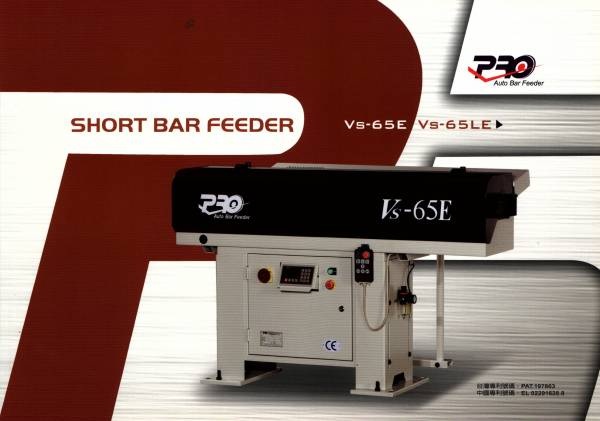

SHORT BAR FEEDER
Model: Vs-65E
Category: Machine Tools / Others / Other Machinery
Characteristics
Bar Diameter Φ 5.0mm∼Φ 65mm
. No special requirements or restrictions on material straightness.
. Material rotates within mahining area and spindle length of lathe.
. Lathe spindle speed can be maximized.
. Material can be round, hexagonal and shaped.
. Material length can be uniform or random.
. Easy to operate and maintain.
. Small footprint.
. Different speed control on feeding and retracting.
. Variable feeding torque applies on different diameter(weight) and
length to avoid bending of material.
. Sub-spindle mode.
Specifications
| Model | Vs-65E | Vs-65LE |
| Diameter of Bar | Φ13/64"~Φ2-9/16" | Φ5mm~Φ65mm |
| Length of Bar | max.48"/1200mm | max.60"/1500mm |
| Spindle Height | 36-7/32"~51-1/8" | 920mm~1300mm |
