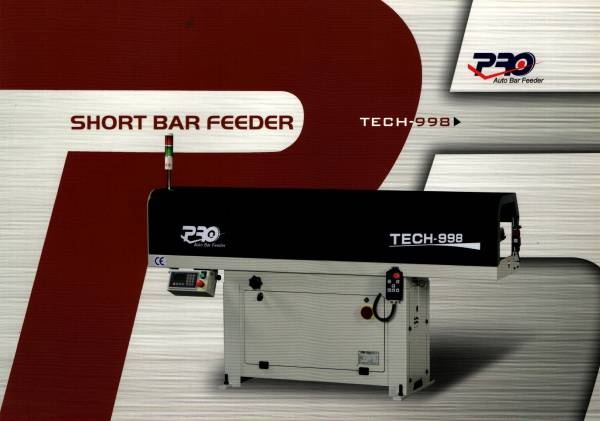

SHORT BAR FEEDER
Model: TECH-998
Category: Machine Tools / Others / Other Machinery
Characteristics
Bar Diameter Φ 9.0mm∼Φ 100mm
. Mitsubishi servomotor and AX2N PLC.
. All other settings are keyed in on the screen.
. Adjustable faceplate conforms to operator use.
. Easy to operate by remote control box.
. Various feeding torques can be applied on different diameters,
weights and lengths to minimize to distort the bar.
. Automatic positioning to the spindle center without any manual
adjustments. Material size is directly input on the screen.
. Loaded material impacts and rests on urethane.
. Easy to change spindle linear and maintain.
It is unnecessary to purchase optional sliding rail.
Specifications
| Bar Diameter | 9-100mm |
| Bar Length | 250-1600mm(Bar Length Depends On Spindle Length) |
| Centerline Height | 850-1150mm |
| Bar Pusher | ø10 , ø19 |
| Automatic Cycle Reload Time | 22(sec) |
| Feed Speed | 20mm-500mm/(sec) |
| Power Supply | 3Phase 200~240VAC 5A 50/60HZ |
| Magazine Capacity | 780mm ø10mm x 78(bar) |
