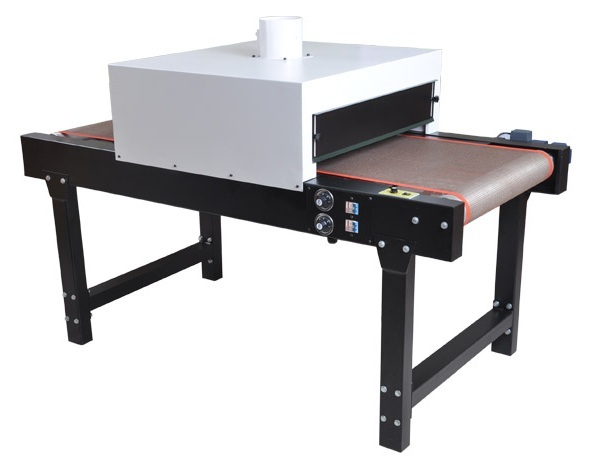

IR conveyor drying machine
Model: DIR-650
Category: Packaging, Printing, Food & Pharmacy Machinery / Other Machinery / Other Machinery
Characteristics
The conveyor dryer is one of the best options for a starter conveyor available on the market. It offers many features that standard conveyor dryers don't have. This dryer is a great addition to a small shop or package that only has a flash dryer for a heating source. Also the oven portion of the dryer is completely adjustable to accommodate different needs and different jobs. By moving the oven back on the belt you can actually fit more shirts in the dryer at a time.
Specifications
Feature:
Adjustable oven gates
Adjustable belt speed control
Adjustable height of infrared lamp
Adjustable the number of work lamps
Optional hot air system
Specification: DIR-650
Conveyor(L*W*H) 1800*900*1150mm
The drying zone(L*W) 800*900mm
Conveyor belt width 650mm
The biggest conveyor width 750mm
The biggest conveyor height 100mmdjustable)
Conveyor belt(material) PTFE(Teflon)
Conveyor belt(speed) 1-5meter/minute
IR Lamp 500W, Eight pieces,Heraeus (Adjustable)
Power of generator 90W(stepless speed regulation)
Total Power 4,100W, 220V
G.W 160KG
Customized drying area, belt width, input/output etc are favorable.
