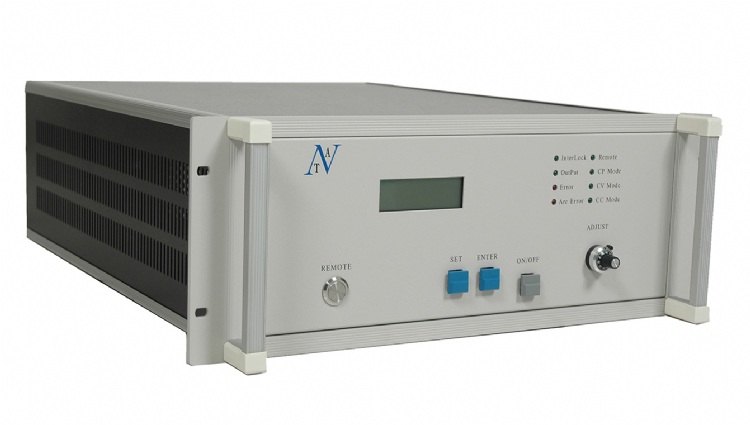

RESONANT TYPE POWER SUPPLY
Model: HRPS-01T~HRPS-15T
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
ATN Power of HRPS is a resonant intermediate frequency high voltage power supply series. Power supply delivers stable high voltage output of 1KV~24KV Sin wave, maximum power of 0~12KVA, built-in 32bit digital control, full arc and short circuit protection, and good surveillance system allowing HRPS series more stable and easier to operate.
FEATURES
Discharge mechanism of Large Area Capacitive Plasma using Load Resonance.
Short Circuit, Over-Load and Arc Protected.
high uptime and product life cycle.
low voltage current adjusted according to customer.
Applying High Efficiency / High Reliability by Soft-Switching Topology.
Detect High Speed Arc Current and Discharge Control.
APPLICATIONS
Cleaning and Activation of Surface for PCB Material.
Improvement of Die Attach, Epoxy Adhesion.
Elimination of Virus and Hazardous Environmental Substances.
Cleaning of LCD / PDP Glass.
LCD / PDP PR Ashing.
Suitable for optical film and special film coating cleaning equipment.
Specifications
MODEL |
HRPS-01T |
HRPS-02T |
INPUT VOLTAGE |
1ψ, 220Vac±10H , 50/60Hz |
|
OUTPUT POWER |
1KVA |
2KVA |
OUTPUT VOLTAGE |
Max. 24KV |
|
VOLTAGE WAVEFORM |
Sin Wave |
|
FREQUENCY |
>50kHz |
|
REGULATION |
VOLTAGE /POWER |
|
CONTROL MODE |
LOCAL / PLC / REMOTE |
|
DISPLAY TYPE |
LCD MODLE |
|
TEMPERATURE |
10-50°C |
|
COOLING |
Forced AIR |
MODEL |
HRPS-05T |
HRPS-08T |
HRPS-12T |
HRPS-15T |
|
INPUT VOLTAGE |
3ψ, 220Vac±10H , 50/60Hz |
||||
OUTPUT POWER |
5KVA |
8KVA |
12KVA |
15KVA |
|
OUTPUT VOLTAGE |
Max. 18KV |
||||
VOLTAGE WAVEFORM |
Sin Wave |
||||
FREQUENCY |
50kHz |
40kHz |
|||
REGULATION |
VOLTAGE /POWER |
||||
CONTROL MODE |
LOCAL / PLC / REMOTE |
||||
DISPLAY TYPE |
LCD MODLE |
||||
TEMPERATURE |
10-50°C |
||||
COOLING |
WATER-COOLED |
