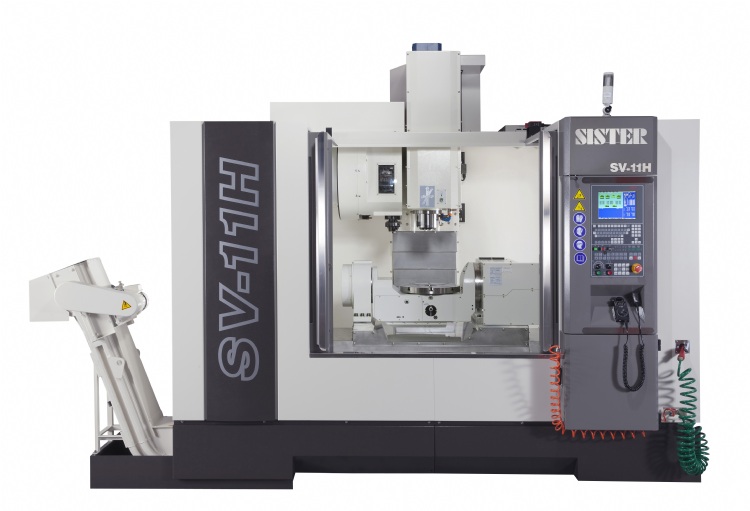

Vertical machine center
Model: SV-11H 5 axis
Category: Machine Tools / Machining Centers / Machining Centers, Vertical
Characteristics
1) One time finished meehanite casting also utilize annealing & abrasive machining
ensuring precision & steady.
2) A high rigid , high loading roller-type linear guide-ways for 3-axis is available for high speed
& heavy cutting performance.
3) A wide range column basis with high rigid , one time finished casting design enhancing the
machining capability in diverse cutting conditions.
4) One time finished screw type chip clean system design in the front of work table easy and
efficient chip remove.
5) It's suitable to high speed hardened metal cutting & tough machining application cutting.
Specifications
|
Control |
CNC controller |
|
Intek/Mitsubishi/Fanuc |
|
Travel |
X x X-axis/Y x Y-axis/ Z x Z-axis |
mm |
1100/600/600 |
|
Table top surface to spindle nose |
mm |
120~720 |
|
|
Linear Guideway type(X/Y/Z) |
mm |
35/45/45 mm (roller type) |
|
|
Ball screw |
mm |
Ø40/Ø40/Ø40 |
|
|
Table |
Table work surface area (X-axis x Y-axis) |
Mm |
1250 x 600 |
|
T-slots (Size x Number x Centre) |
18 x 5 x 100 |
||
|
Max. work piece weight |
Kg |
1000 |
|
|
Feed rate |
Rapid traverse rate X/Y/Z |
m/min |
30/30/24 |
|
Cutting feed rate |
mm |
1-10000 |
|
|
Minimum Input increment |
mm |
0.001 |
|
|
Spindle |
Spindle holder |
|
Belt type /direct- type/ built in type |
|
Spindle motor |
Kw |
7.5K/11 (11/15) kw |
|
|
Spindle speed |
Rpm |
8000 (10000/12000/15000) rpm |
|
|
Cooling / Lubrication |
|
Oil/Grease |
|
|
A.T.C |
Tool magazine capacity |
T |
20T Armless type /24T Armless type |
|
Armless type tool type |
|
Jaw type 45∘pull stud |
|
|
Max. tool weight |
Kg |
7 |
|
|
Max. tool length |
Mm |
300 |
|
|
Tool selection |
|
Armless |
|
Model |
Unit |
GF-211P/PB |
||
|---|---|---|---|---|
|
Worktable diameter |
mm |
Ø 210 |
||
|
Center bore diameter |
mm |
Ø 40H7 |
||
|
Height of table |
m / min |
305 |
||
|
Height of center (vertical) |
mm |
225 |
||
|
Width of T-slot |
mm |
12H7 |
||
|
Width of guide block |
mm |
18 |
||
|
Drive pressure / method |
Kg／cm2 |
5-7/Pneumatic |
||
|
Servo motor type |
|
|
Rotary |
Tilt |
|
Fanuc |
|
α4i |
HF104T |
|
|
Mitsubishi |
|
HF54T |
HF104T |
|
|
Transmission ratio |
|
0.1 |
0.13 |
|
|
Max. rotation speed |
min |
33.3 |
22.2 |
|
|
Max. load |
In horizontal |
Kg |
75 |
|
|
In Tilt (0~90°) |
kg |
50 |
||
|
Resolution |
deg. |
0 |
||
|
Indexing accuracy |
sec |
20" |
50" |
|
|
Repeatability |
sec |
6" |
8" |
|
|
Tilting angle range |
deg. |
+30~-120 |
||
|
Net weight (without servo motor) |
Kg |
300 |
||
|
Clamping torque |
Kg.m |
26 |
30 |
|
|
Allowable wheel torque |
Kg.m |
17 |
||
