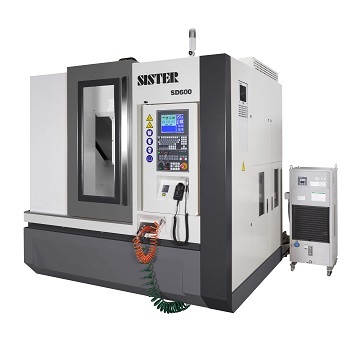

Double column high speed machine SD600
Model: SD600
Category: Machine Tools / Milling Machines / CNC Vertical Milling Machines
Characteristics
High speed 0.65G cutting
perfect accuracy 12.3 μ
spindle rigidity radial -12Kg μm~ axial -8/kg/ μm
Low cutter wear -high acceleration /deceleration
High speed operation
continuous machining tolerances from large tool to small tool on surface below 0.01mm
corner rest machining can support up to dia 0.2 mm
Machining surface can achieve accuracy of 85% from 3ddate surface
machining time shorteren by 30%
Specifications
|
|
Model |
Unit |
SD600 |
|
Control |
CNC controller |
|
Intek/Mitsubishi/Fanuc |
|
Travel 行程 |
X x X-axis/Y x Y-axis/Z x Z-axis |
mm |
600/600/320 |
|
Table top surface to spindle nose |
mm |
80~400 |
|
|
Linear Guideway type (X/Y/Z) |
mm |
45/45/45(THK-Ball type) |
|
|
Ball screw(X/Y/Z) |
mm |
∅40/ ∅40/ ∅40 |
|
|
Table 工作台 |
Table work surface area (X-axis x Y-axis) |
mm |
600x600 |
|
T-Slots (Size x Number x Centre) |
|
18x4x150 |
|
|
Max. work piece weight |
Kg |
500 |
|
|
Feed rate 速度 |
Rapid traverse rate X/Y/Z |
m/min |
20/20/20 |
|
Cutting feed rate |
mm |
1-15000 |
|
|
Minimum input Increment |
mm |
0.001 |
|
|
Spindle 主軸 |
Spindle holder |
|
HSK-E40 |
|
Spindle motor |
Kw |
4.6 |
|
|
Spindle speed |
rpm |
24000/30000 |
|
|
Cooling Lubrication |
|
Oil/Grease |
|
|
A.T.C 刀庫 |
Tool magazine capacity |
T |
24 |
|
Max. tool weight |
Kg |
1.5 |
|
|
Max. tool length |
mm |
150 |
|
|
Tool selection |
|
Armless |
|
|
Motors 伺服馬達 |
X-axis drive motors |
kw |
3.5 |
|
Y-axis drive motors |
kw |
3.5 |
|
|
Z- axis drive motors |
kw |
3.5 |
|
|
Others 其他 |
Power |
KVA |
20 |
|
Pneumatic pressure |
Kg/cm² |
6 |
|
|
Cutting pump |
HP |
3/4 |
|
|
Coolant tank capacity |
L |
250 |
|
|
Net weight |
Kg |
6500 |
|
|
Floor space |
mm |
2200x2700x2650 |
