Customized Heavy Duty 5 tons Load Transfer Roller Conveyor Industrial AGV
Model: OK-AGV-rolller
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OKAGV
Model Number:
OK-QDXL-CH-AGV
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Heavy duty industrial AGV
Other name:
AGV
Navigation:
magnetic tape
Load volume:
200kg~8000kg
Charging:
Manual/ Automatic
Type:
roller conveyor AGV
Direction:
omni-directional
Accuracy:
10mm
Communication:
WLAN
Sensor:
safety sensor
Specifications
Customized Heavy Duty Load Transfer Roller Conveyor Industrial AGV
Product Description
Description of heavy duty industrial AGV:
| Type of AGV | Lurking Pull Type |
| Size | L1385*W350*H280(mm) |
| Control Mode | PLC/AGV Moving Control Chip(Optional) |
| Guidance Mode | Magnetic Tape Guidance/Electro-Optical Guidance/Laser Guidance(Optional) |
| Direction of Moving | Forward,Left & Right Turning, folkway picking |
| Communication | Wireless LAN(Optional) |
| Driving Mode | Differential Speed Driving |
| Power Supply of Driving | DC24V,DC48V |
| Lifting of Driving | Manual/Electrical Lifting |
| Load | 100,300,500,1000KG(Customize) |
| Speed of Moving | min(or customizable) |
| Turning Radius | Minimum to 500mm(Radius of Tape Installation) |
| Guidance Accuracy | +/-10mm |
| Working Time | 24Hours |
| Climbing Ability | 3-5 degrees |
| Parking Accuracy | +/-10mm |
| Charging Mode | Manual Charging(Automatic Charging Optional) |
| Battery | Maintenance-Free Rechargeable Battery |
| Ongoing Discharging Times:>300 Times | |
| Safety Proximity Range | <3m/=3m,Adjustable,Less Than 20mm Emergency Breaking Distance |
| Human-Computer Interaction |
With Touch-Screen Human-Computer Interaction, user can easily set parameter, station and warning. |
| Environment for use | Indoor Temperature:0-40 degrees centigrade,Relative Humidity: 40%-80% |
| Protection | Front Roadblock Detecting Sensor+Mechanical Anticollision Dual-Protection |
| Service Life | >10Years |

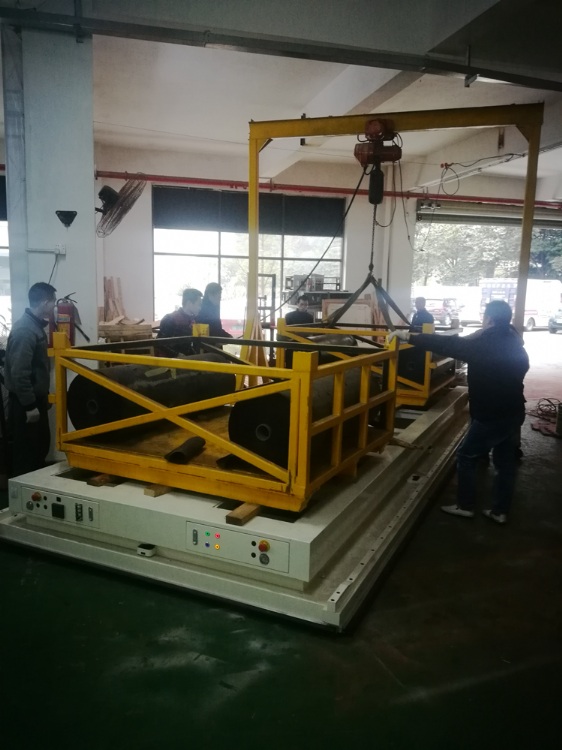

Pictures of conveyor AGV:
