Differential drive Wheels 1 2 4 Way Directional Lurking and tugger AGV
Model: OK-AGV-LURKING
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OKAGV
Model Number:
OK-QSXL2-CH-II
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Lurking And Tuging Type Trackless AGV
Other name:
Steer Wheels 1 2 4 Way Directional AGV
Navigation:
inertia guided
Load volume:
1000kg~3000kg
Charging:
Manual/ Automatic
Type:
Lurking AGV
Accuracy:
10mm
Direction:
1, 2, 4 way omnidirectional
Protection:
laser safety sensor
Manufacturer:
OKAGV
Specifications
Differential drive Wheels 1 2 4 Way Directional Lurking and tugger AGV
Product Description
Description of lurking AGV:
OKAGV Steer Wheels 1 2 4 Way Directional Lurking And Tuging Type Trackless AGV, moving forward and backward, sideward without turning around, small working and turning space required. Easy installation.
AGV lurks under the trolley, raise the traction bar to connect the trolley, automatically move backwards to leave.
Name | Steer Wheels 1 2 4 Way Directional Lurking And Tuging Type Trackless AGV |
Control Mode | MCU/PLC(optional) |
Guidance Mode | Inertia Guidance |
Direction of Moving | Forward& Backward, Sideward, Left & Right Turning, forked way picking |
Driving Mode | Differential Speed Driving |
Max load volume in kg | 3000 |
N.W.(with battery)in kg | <200/=200 |
Max moving speed, m/min | 0-35 |
Load& unload | Automatically connect& disconnect the trolley with AGV |
Guidance Accuracy | +/-10 |
Stop Accuracy | +/-10 |
Charging Mode | Manual Charging(Automatic Charging Optional) |
Battery | Maintenance-Free Rechargeable Battery |
Ongoing Discharging Times:>500 Times | |
Communication | WLAN |
Protection | Front Roadblock Detecting Sensor+Mechanical Anticollision Dual-Protection |
Interface | English/Chinese |
Extension | Open extensions interface |

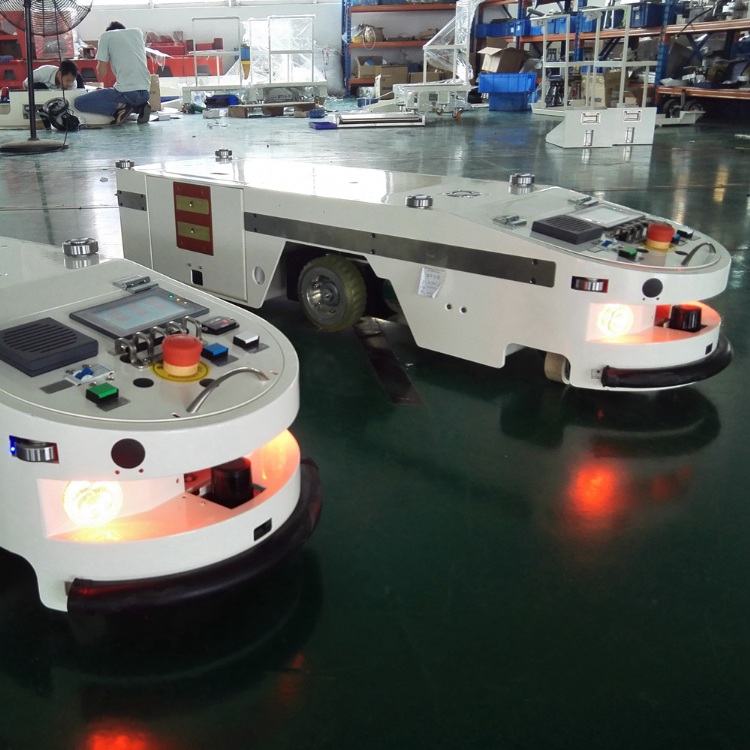

Pictures of trolley AGV:
Company Information
Shenzhen OKAGV Company Limited(Shenzhen OKAGV Robotics Corp.Ltd.)dedicates to manufacturing& developing AGV(automated guided vehicle/autonomous mobile robot)and logistics robots,constantly providing high end AGV equipment and system.
OKAGV products range covers lurking AGV,tugger AGV,load transfer AGV,lifting AGV,forklift AGV,warehouse logistics AGV robot,waitress AGV robot etc.Different navigation method available,customized OEM/ODM welcome.
Ever since the beginning,we set quality standard according to EU technics,introduced advanced AGV/AMR technology and plans,high investment into technology R&D teams.So far we have gained trust and acceptance from customers like Foxccon,GREE,Midea,Panasonic,HITACHI elevator,Meiling(Hefei),Liugong Forklift,FAW,SAIC motor,etc. In many industries like aerospace,aviation,automobiles,home compliances,electronics,Opto electronics,heavy industries,banking,hospital,printing etc, OKAGV products are widely used.
