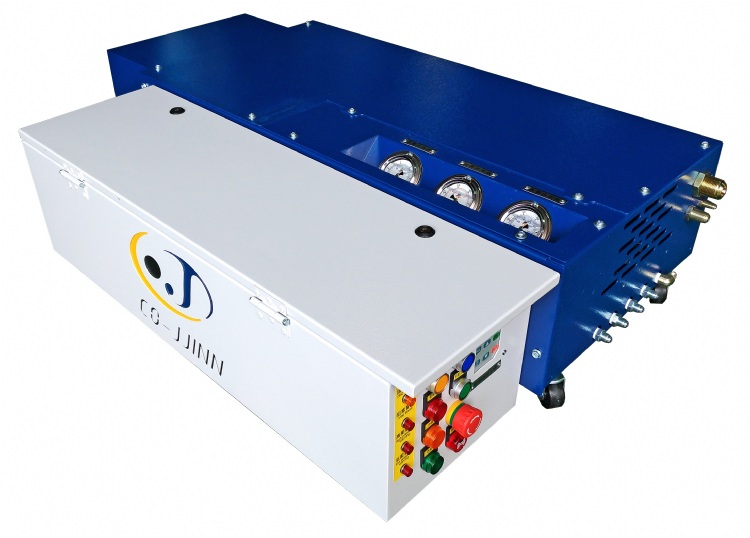

High Pressure Coolant System
Model: TV070BTW-IDOS-2
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
● Solve string chip
● Increase productivity
● Extend tool life
● Especially fit for deep hole drilling machine
● Multiple CNC memories (VFD type only)
● Energy saving (VFD type only)
● Able to install under feeder for saving working space
● Keep constant pressure (recommeded outlet diameter)
Specifications
| Model | 0V070BTW-IDOS-XS | TV070BTW-IDOS-2 / 0V070BTW-IDOS-2 | TV140BTW-IDOS-2 / 0V140BTW-IDOS-2 |
| Max Pressure | 70BAR | 70BAR | 140BAR |
| Filtration | 100μm | 5μm；10μm | 5μm；10μm |
| Power | 5HP | 5HP | 7.5HP |
| Oil ration | 100% | 100% | 100% |
| Max flow rate | 23L/MIN | 23L/MIN | 23L/MIN |
| Dimension (WxLxH) | 83X75X30 (cm) | VFD. 105X75X30 (cm) Fixed Freq. 83X75X30 (cm) |
VFD. 122X78X30 (cm) Fixed Freq. 100X78X30 (cm) |
| Frequencey | Fixed Freq. | VFD/ Fixed Feq. | VFD/ Fixed Feq. |
