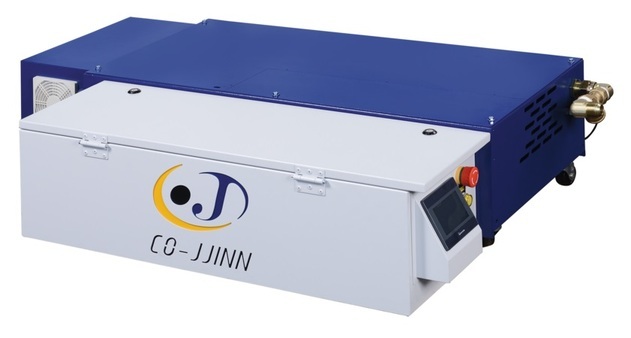

IDOS Type High Pressure Coolant Systems-VFD
Model: TV070BTW-IDOS-2-S
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
* Solve stringy chip
* Increase productivity
* Extend tool life
* Could be installed under bar feeder to save space
Specifications
Model | TV070BTW-IDOS-2-S | TV140BTW-IDOS-2-S | TV140BTW34L-IDOS-2-S |
Version | VFD70Bar Economical version | VFD140Bar Energy Efficiency version | VFD140Bar Standard version |
Max Pressure | 70BAR | 140BAR | 140BAR |
Oil Ratio | 100% | ||
Power | 5HP | 7.5HP | 10HP |
Max Flow Rate | 19.3L/MIN | 23L/MIN | 34.5L/MIN |
Internal Coolant Hole | Outlet dia. beneath 2mm preferred at 70Bar | Outlet dia. beneath 1.5mm preferred at 140Bar | Outlet dia. beneath 1.5mm preferred at 140Bar |
Voltage | 220V/380V/415V | ||
Hz | 50Hz~60Hz | ||
Filtration (um) | 5um; 10um | ||
Water Inlet | 1" | ||
Water Outlet | 3/8" | ||
Dimension(WxLxH) | 1220x780x300 (mm) | 1220x780x300 (mm) | 1350x780x300 (mm) |
Applicable | Machines use oil cutting fluid, particularly suitable for CNC precision automatic lathe |
