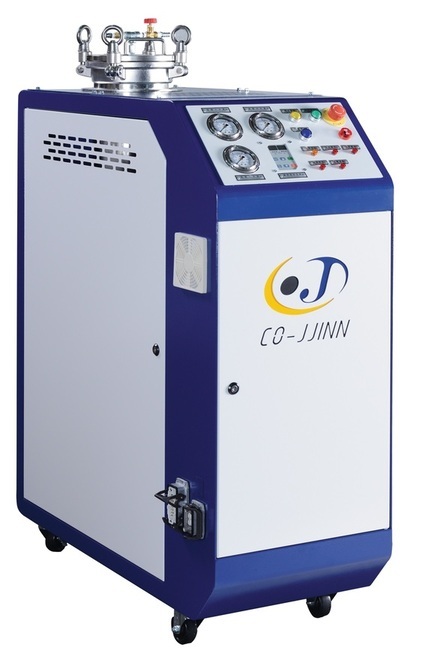

Grundfos High Pressure Coolant System VFD/Fixed Freq
Model: GV050BGF-R1-1
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
● Solve stringy chip
● Increase productivity
● Extend tool life
● Longevity
● No noise
● Keep constant pressure (based on recommended outlet diameter)
Specifications
| Model | GV050BGF-R1-1 | TV070BGF-R1-1 / 0V070BGF-R1-1 | TV100BGF-R1-1 / 0V100BGF-R1-1 |
| Max Pressure | 50BAR | 70BAR | 100BAR |
| Oil Ratio | 6%~100% | ||
| Power | 10HP | 5HP | 10HP |
| Max Flow Rate | 45L/MIN | 25L/MIN | 35L/MIN |
| Internal Coolant Hole | Outlet dia. beneath 3mm preferred at 50Bar | Outlet dia. beneath 2mm preferred at 70Bar | Outlet dia. beneath 2mm preferred at 100Bar |
| Voltage | 220V/380V/415V | ||
| Hz | 50Hz~60Hz | ||
| Filtration (um) | 5um; 10um | ||
| Water Inlet | 1" | ||
| Water Outlet | 1/2" | ||
|
Dimension(WxLxH) |
470x1080x1500 (mm) | ||
| Option | HMI (Human-Machine Interface) | ||
| Applicable | Turning lathe, Turn-mill machine, Double column milling machine, Deep hole drilling | ||
