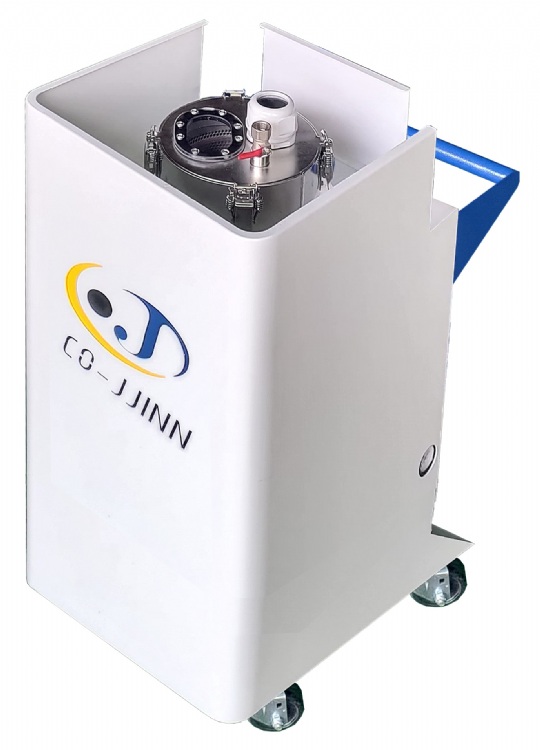

CNC Wet Vacuum Cleaner
Model: CSG-D
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pumps, Fans (Blowers), Compressors, and Vacuum Pumps
Characteristics
● Designed for clean iron chip and sludge
● Solve string chip and sludge deposition
● Extend cutting fluid working period, also maintain its quality
● Drived by air pressure; no electric power requested
● Swiftly filter and no need to shut down CNC machine
● Easy to relocate; available for work one-to -many
● Filtration accuracy is adjustable upon request
Specifications
| Model | CSG-D | CSG-H1 |
| Dimension (WxLxH) | 56×42×100 (cm) | 83×42×100 (cm) |
| Filter Bucket Capacity | 6.5L | 6.5L +2L |
| Net Weight | 64KG | 84KG |
| Max Coolant Flow | 180L/per min | 180L/per min |
| Air Pressure | 0.5Bar~8.3Bar | 0.5Bar~8.3Bar |
| Filtration | 380μm | by request- customizate |
| Filtration material | 304 stainless filter tank or fliter bag | 304 stainless filter tank or fliter bag |
