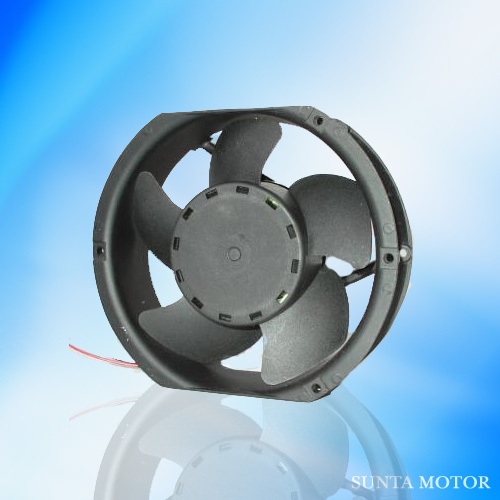

DC FAN



Model: 17251D*-HBAPL

Category: Machinery Parts and Components / Other Machinery / Other Machinery



Online Inquiry





Characteristics



Size: 172*150*51mm.(6.77*5.91*2.10 inch.)
Motor: Brushless DC Motor
Motor protected: Polarity+ over current shutdown protected
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 800 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing.
Operating Temp: Ball bearing:within-20~80 degree C
Sleeve bearing:within -10~56 degree C
Life expectancy: Ball bearing:50,000 hours at 60 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals:CE
Net weight :930 (grams)
CONNECTOR:T: terminalL: lead wire
