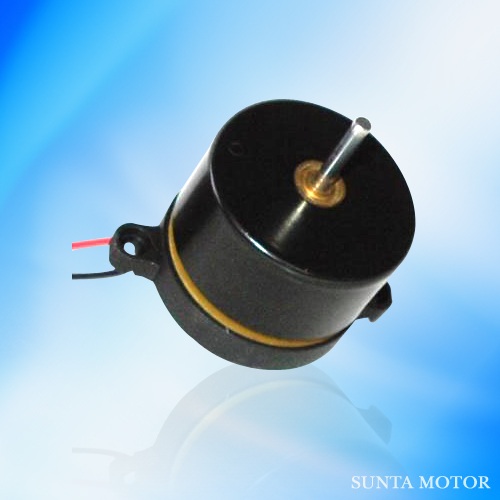

DC MOTOR
Model: 3019D*-HBPL
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
Size: 37.5 x 29 mm.
Motor: Brushless DC Motor
Motor protected: 1,Polarity + Over current shutdown protected (OCP)
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 min at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing.
Operating Temp: Ball bearing: within-20~80 degree C
Sleeve bearing: within -10~56 degree C
Life expectancy: Ball bearing: 50,000 hours at 60 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals: CE
Net weight : (grams)
CONNECTOR: L: lead wire
Specifications
MODEL NO. | RATED | RATED | RATED | VOLTAGE |
AMP | RPM | RATED VDC | ||
VDC | A | RPM | VDC | |
BM3019D1-HBPL-CCW | 12 | 0.09 | 4000 | 12~13.6 |
BM3019D2-HBPL-CCW | 24 | 0.06 | 4000 | 16~28 |
BM3019D4-HBPL-CCW | 48 | 0.04 | 4000 | 36~56 |
