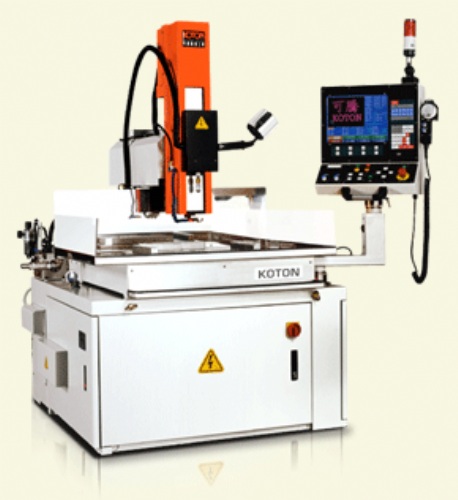

CNC Drilling Electric Discharge Machine

Model: KTC-540CNC

Category: Machine Tools / Electric Discharge Machines / CNC Drill Electric Discharge Machines

Online Inquiry

Characteristics

●Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
●Provide 1μ optical scale, linear slideway and ballscrew ensure very accurate movements.
●Spindle shaper head, X & Y axes motion on head , fixed bed; for automotive applications and other small bore machining on sheet metal molds/dies.
●NC program G-code and DXF files could be directly read; Automatically finds the start cutting point and begins a fine hole drilling process.
●The machining coordinate can be input directly when NC program is not available.
●Automatic edge, internal diameter finding, and centering.
●Coordinates can rotate at any angle. Mirror image function.
●Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
●Automatic illustrates the path of current and next drilling position with color. Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and returns to complete any that are too shallow.)
●The flushing medium used by this machine is distilled water - environment friendly.
●Data could be input by USB, transfer through RS232 or network.
●Direct and easy learning dialogue operation interface.
