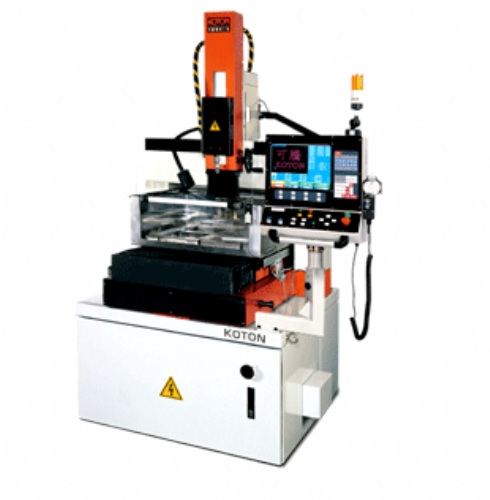

CNC Drilling EDM
Model: KTH-506CNC
Category: Machine Tools / Electric Discharge Machines / CNC Drill Electric Discharge Machines
Characteristics
¡´Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
¡´Provide 1£g optical scale, linear slideway and ballscrew ensure very accurate movements.
¡´Double column type structure , X axis on machine head ,Y axis on machine bed; made for small bore EDM applications on heavy molds/dies.
¡´NC program G-code and DXF files could be directly read; Automatically finds the start cutting point and begins a fine hole drilling process.
¡´The machining coordinate can be input directly when NC program is not available.
¡´Automatic edge, internal diameter finding, and centering.
¡´Coordinates can rotate at any angle. Mirror image function.
¡´Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
¡´Automatic illustrates the path of current and next drilling position with color. Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and returns to complete any that are too shallow.)
¡´The flushing medium used by this machine is distilled water - environment friendly.
¡´Data could be input by USB, transfer through RS232 or network.
¡´Direct and easy learning dialogue operation interface.
Specifications
Table travel X/Y 500 ¡Ñ 600 mm
Z axis travel 350 mm
Ram servo travel 350 mm
Work table dimension 600 ¡Ñ 700 mm
Max. Workpiece dimension 800 ¡Ñ 1120 mm
Max. Length of electrode 400 mm
Min. Electrode diameter Ø0.2~Ø3.0 mm
Max. Workpiece weight 500 kgs
Dielectric - Water
Capacity of dielectric 100 liters
Machine weight (nw/ gw) 2200/ 2400 kg
Packing dimension 1900 ¡Ñ 1700 ¡Ñ 2400 mm
Machine structure - Double Column
---------------------------------------------------------------------
Max. Current 25 A
Peak current setting (ip)6 steps
Pulse on-time setting9 steps
Pulse off-time setting 9 steps
High volts 3 steps
Power input 220/ 380/ 415 V
Max. Rating power 4 KVA
