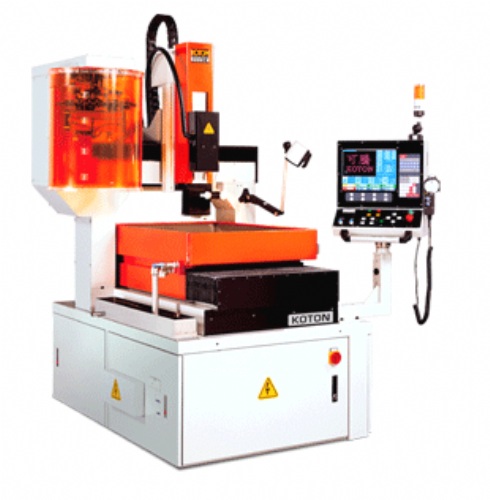

Automatically Tool Change Drilling Electric Discharge Machine
Model: KTH-506ATC
Category: Machine Tools / Electric Discharge Machines / CNC Drill Electric Discharge Machines
Characteristics
¡´Automatic 16 & 30 copper tube changers available.
¡´Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
¡´Provide 1£g optical scale, linear slideway and ballscrew ensure very accurate movements.
¡´Automatic copper tube deviation correction.
¡´NC program G-code and DXF files could be directly read; Automatically finds the start cutting point and begins a fine hole drilling process.
¡´The machining coordinate can be input directly when NC program is not available.
¡´Automatic edge, internal diameter finding, and centering.
¡´Coordinates can rotate at any angle. Mirror image function.
¡´Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
¡´Automatic illustrates the path of current and next drilling position with color. Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and returns to complete any that are too shallow.)
¡´The flushing medium used by this machine is distilled water - environment friendly.
¡´Data could be input by USB, transfer through RS232 or network.
¡´Direct and easy learning dialogue operation interface.
Specifications
Work table dimension
mm 600 ¡Ñ 490
Max. Workpiece dimension
mm 1185 ¡Ñ 740
Table travel X/Y mm 500 ¡Ñ 400
Z axis travel mm 350
Ram servo travel mm 350
Max. Length of electrode mm 400
Min. Electrode diameter mm Ø0.2~Ø3.0
Max. Workpiece weight kgs 500
Dielectric - Water
Capacity of dielectric
litres 100
Machine weight (nw/ gw) kg 2100/2300
Packing dimension mm 2300 ¡Ñ 1800 ¡Ñ 2240
Machine structure - Traveling Head
----------------------------------------------------------------
Max. Current 25 A
Peak current setting (ip) 6 steps
Pulse on-time setting 9 steps
Pulse off-time setting 9 steps
High volts 3 steps
Power input 220/ 380/ 415 V
Max. Rating power 4 KVA
