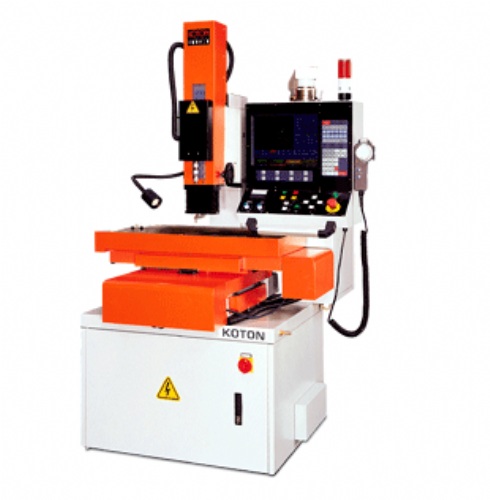

CNC Drilling Electric Discharge Machine
Model: KTH-305CNC
Category: Machine Tools / Electric Discharge Machines / CNC Drill Electric Discharge Machines
Characteristics
Precision servo motors on X,Y,Z axes provide excellent stability during drilling.
Provide 1g optical scale, linear slideway and ballscrew ensure very accurate movements.
C type structure.
NC program G-code and DXF files could be directly read; Automatically finds the start cutting point and begins a fine hole drilling process.
The machining coordinate can be input directly when NC program is not available.
Automatic edge, internal diameter finding, and centering.
Coordinates can rotate at any angle. Mirror image function.
Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
Automatic illustrates the path of current and next drilling position with color. Z axis auto reset and depth calculation. (Z axis automatically checks depths of holes, and returns to complete any that are too shallow.)
The flushing medium used by this machine is distilled water - environment friendly.
Data could be input by USB, transfer through RS232 or network.
Direct and easy learning dialogue operation interface.
Specifications
Table travel X/Y 350 250 mm
Z axis travel 350 mm
Ram servo travel 350 mm
Work table dimension 500 300 mm
Max. Workpiece dimension 990 490 mm
Max. Length of electrode 400 mm
Min. Electrode diameter Ø0.2~Ø3.0 mm
Max. Workpiece weight 150 kgs
Dielectric - Water
Capacity of dielectric 20 liters
Machine weight (nw/ gw) 900/ 1000 kg
Packing dimension 1300 1500 2240 mm
Machine structure - C Type
---------------------------------------------------------------------
Max. Current 25 A
Peak current setting (ip) 6 steps
Pulse on-time setting 9 steps
Pulse off-time setting 9 steps
High volts 3 steps
Power input 220/ 380/ 415 V
Max. Rating power 4 KVA
