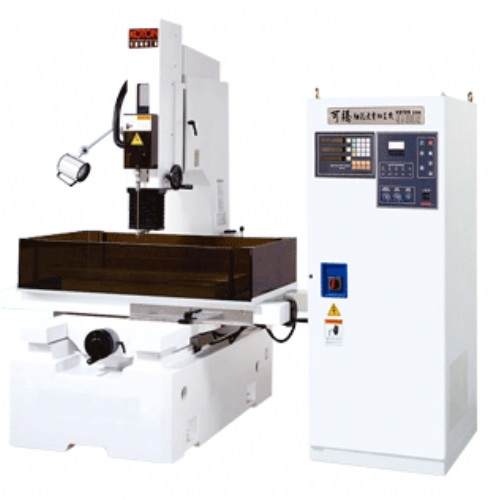

Drilling Electric Discharge Machine

Model: KTH-605

Category: Machine Tools / Electric Discharge Machines / Super Drill EDMs

Online Inquiry

Characteristics

●Suitable for bigger workpiece and plastic mold.
●Capable of drilling at any angle, into curved surfaces, and irregular shapes.
●Precision servo motor control for stable drilling.
●Designed for drilling hardened tool steel, carbides and other conductive materials.
●Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
●The flushing medium used by this machine is distilled water.
●Automatic pressure release function is used in the system.
●The long life worktable is made of stainless steel.

Specifications

Table travel X/Y 600 × 400 mm
Z1+Z2 axis travel 345 + 250 mm
Ram servo travel 350 mm
Work table dimension 800 × 450 mm
Max. Workpiece dimension 1000 × 500 mm
Max. Length of electrode 400 mm
Min. Electrode diameter Ø0.2~Ø3.0 mm
Max. Workpiece weight 300 kgs
Dielectric - Water
Capacity of dielectric 20 liters
Machine weight (nw/ gw) 2100/ 2200 kg(Machine)
60/ 70 kg(Electrical Control Box)
Packing dimension 1800 × 1500 × 2230 mm(Machine)
900 × 800 × 1700 mm(Electrical Control Box)
----------------------------------------------------------------
Max. Current A 25
Peak current setting (ip) steps 6
Pulse on-time setting steps 9
Pulse off-time setting steps 9
High volts steps 3
Power input V 220/ 380/ 415
Max. Rating power KVA 4
