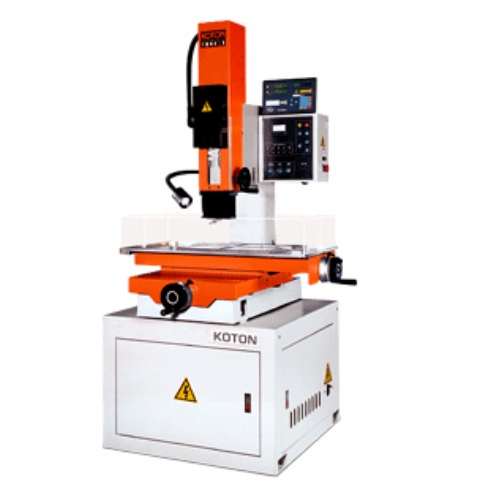

Drilling Electric Discharge Machine
Model: KTH-305
Category: Machine Tools / Electric Discharge Machines / Super Drill EDMs
Characteristics
Capable of drilling at any angle, into curved surfaces, and irregular shapes.
Precision servo motor control for stable drilling.
Designed for drilling hardened tool steel, carbides and other conductive materials.
Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
The flushing medium used by this machine is distilled water.
Automatic pressure release function is used in the system.
The long life worktable is made of stainless steel.
Specifications
Table travel X/Y 350 x 250 mm
Z axis travel 350 mm
Ram servo travel 350 mm
Work table dimension 500 x 300 mm
Max. Workpiece dimension 875 x 470 mm
Max. Length of electrode 400 mm
Min. Electrode diameter Ø0.2~Ø3.0 mm
Max. Workpiece weight 150 kgs
Dielectric - Water
Capacity of dielectric 20 liters
Machine weight (nw/ gw) 800/ 900 kg
Packing dimension 1240 1210 2240 mm
---------------------------------------------------------------------
Max. Current 25 A
Peak current setting (ip) 6 steps
Pulse on-time setting 9 steps
Pulse off-time setting 9 steps
High volts 3 steps
Power input 220/ 380/ 415 V
Max. Rating power 4 KVA
