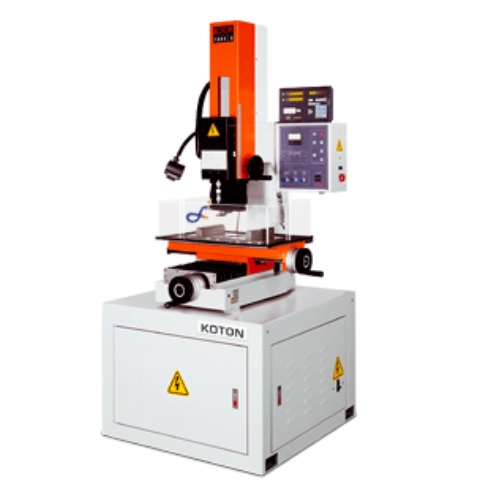

Drilling Electric Discharge Machine
Model: KTH-200A
Category: Machine Tools / Electric Discharge Machines / Super Drill EDMs
Characteristics
Capable of drilling at any angle, into curved surfaces, and irregular shapes.
Precision servo motor control for stable drilling.
Designed for drilling hardened tool steel, carbides and other conductive materials.
Suitable for small workpiece and components.
Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
The flushing medium used by this machine is distilled water.
Automatic pressure release function is used in the system.
The long life worktable is made of stainless steel.
Specifications
Table travel X/Y 300 200 mm
Z axis travel 350 mm
Ram servo travel 330 mm
Work table dimension 460 210 mm
Max. Workpiece dimension 630 420 mm
Max. Length of electrode 400 mm
Min. Electrode diameter Ø0.2~Ø3.0 mm
Max. Workpiece weight 80 kgs
Dielectric - Water
Capacity of dielectric 20 liters
Machine weight (nw/ gw) 550/650 kg
Packing dimension 1240 1210 2240 mm
---------------------------------------------------------------------
Max. Current 25 A
Peak current setting (ip) 6 steps
Pulse on-time setting 9 steps
Pulse off-time setting 9 steps
High volts 3 steps
Power input 220/ 380/ 415 V
Max. Rating power 4 KVA
