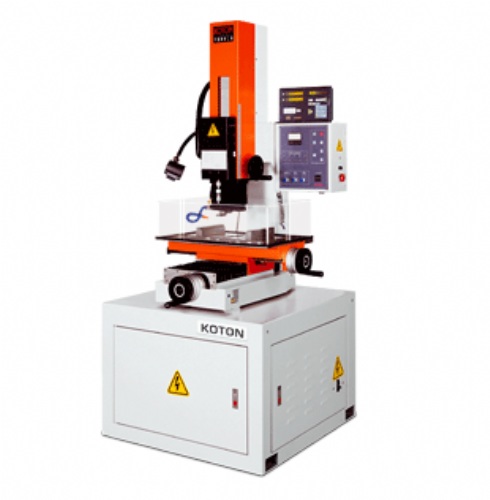

Drilling Electric Discharge Machine

Model: KTH-200

Category: Machine Tools / Electric Discharge Machines / Super Drill EDMs

Online Inquiry

Characteristics

●Capable of drilling at any angle, into curved surfaces, and irregular shapes.
●Precision servo motor control for stable drilling.
●Designed for drilling hardened tool steel, carbides and other conductive materials.
●Suitable for small workpiece and components.
●Drilling capacity from 0.2 mm to 3.0 mm diameter brass or copper electrode tubes.
●The flushing medium used by this machine is distilled water.
●Automatic pressure release function is used in the system.
●The long life worktable is made of stainless steel.

Specifications

Table travel X/Y 300 × 200 mm
Z axis travel 350 mm
Ram servo travel 150 mm
Work table dimension 460 × 210 mm
Max. Workpiece dimension 630 × 420 mm
Max. Length of electrode 400 mm
Min. Electrode diameter Ø0.2~Ø3.0 mm
Max. Workpiece weight 80 kgs
Dielectric - Water
Capacity of dielectric 20 liters
Machine weight (nw/ gw) 550/650 kg
Packing dimension 1240 × 1210 × 2240 mm
---------------------------------------------------------------------
Max. Current 25 A
Peak current setting (ip) 6 steps
Pulse on-time setting 9 steps
Pulse off-time setting 9 steps
High volts 3 steps
Power input 220/ 380/ 415 V
Max. Rating power 4 KVA
