Field Fence
Model: Field Fence Anti Rust Pasture Enclosure For Ranch
Category: Automatic/Industrial Machines & Equipments / Castings / Forged and Stamped Parts
Characteristics

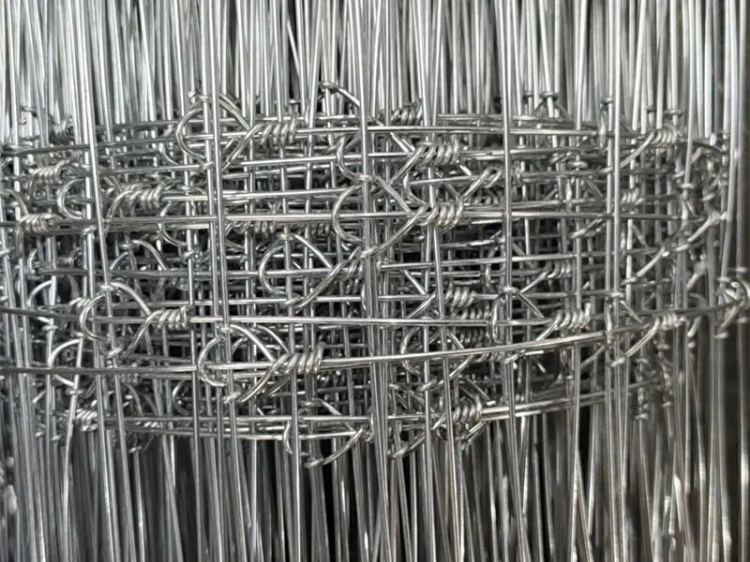

Field fence also named pasture fence, is made of high tensile hot-dipped galvanized steel wire, woven into fixed knot integrated mesh structure. It features firm knot, strong impact resistance, anti-rust, weather resistance and not easy to deform. Standard roll length and multiple mesh heights are available to match different livestock breeding needs. Mainly used for grassland pasture, ranch, farm grazing area boundary isolation, effectively enclose cattle, sheep, horses, deer and other livestock, prevent escape and external wild animal intrusion, widely applied in pastoral areas and large-scale breeding farms.
Hot dipped galvanized woven field fence, also known as grassland fence, is widely used for pasture enclosure, livestock isolation, ranch boundary marking and farmland protection. It is fabricated with low carbon steel wire or high tensile steel wire, available in hinge joint and fixed knot two mainstream weaving structures.
Hinge joint fence features excellent flexibility, fits uneven terrain perfectly, ideal for cattle and sheep grazing areas. Fixed knot fence locks vertical stay wires firmly, maintains stable mesh shape, anti-climb and anti-deformation, perfectly suits deer, horse, goat breeding and high-density grazing zones.
Standard roll heights: 0.9m, 1.2m, 1.5m; regular roll lengths: 50m and 100m. This fence can be matched with steel T-post, Y-post, wooden post and concrete post for quick installation.
Specifications
Field Fence
Technical Specifications
- Material: Hot dipped galvanized low carbon steel wire / high tensile galvanized steel wire
- Weaving Type: Hinge Joint / Fixed Knot
- Available Height: 0.8m, 0.9m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m
- Standard Roll Length: 50m, 100m
- Horizontal Wire Diameter: 2.0mm–2.5mm; top & bottom edge wire: 2.5mm–3.0mm
- Vertical Stay Wire Diameter: 2.0mm–2.5mm
- Vertical Stay Spacing: 150mm, 200mm, 300mm
- Mesh Design: Gradual mesh, smaller bottom holes to prevent small livestock escaping
- Surface Treatment: Standard hot dipped galvanized / heavy zinc galvanized
- Corrosion Resistance: Standard zinc coating for inland areas; heavy galvanized for coastal & humid regions
- Executive Standard: Compliant with ASTM A116M standard
- Installation Accessories: Steel posts, tension wire, fence staples, fixing clips, corner bracing
Application
- Cattle & Sheep PastureHinge joint field fence is the first choice for common grazing land and farm boundary, 0.9m / 1.2m height is most popular.
- Goat & Deer Breeding RanchFixed knot anti-climb fence is adopted for aggressive livestock. 1.8m–2.0m high fence is specially customized for deer enclosure.
- Farmland & Orchard BoundaryUsed for land division, crop field isolation and rural property line marking, long roll design reduces installation joints.
- High Security Ranch FenceMatch with galvanized barbed wire on the top to strengthen protection, suitable for large-scale ranch perimeter isolation.
Fixed Knot Grassland Fence for Deer Enclosure
Fixed Knot Hot Dipped Galvanized Deer Fence
Pasture Grass Field Fence
0.9m×50m Hinge Joint Field Fence
Flexible hinge joint galvanized field fence, suitable for uneven terrain pasture, mainly used for cattle and sheep grazing enclosure and ordinary farm boundary isolation. Stable structure, easy to bend and install.
Specifications
Type: Hinge Joint
Size: 0.9m height × 50m length
Vertical stay spacing: 150mm
Wire material: Hot dipped galvanized steel wire
Matching post: T-post, Y-post, wooden post
Core use: Sheep pasture, cattle grazing paddock, field division
1.2m×100m Fixed Knot Pasture Fence
Firm fixed knot woven fence, vertical wires are tightly locked, not easy to loose and deform, strong compression resistance, perfect for goat, cattle and large ranch long-distance boundary fencing.
Specifications
Type: Fixed Knot
Size: 1.2m height × 100m length
Stay spacing: 150mm
Main wire: 2.5mm, edge wire: 3.0mm
Surface: Hot dipped galvanized
Feature: Good shape retention, impact resistant
Application: Ranch perimeter, permanent pasture fence
1.2m×50m Gradual Mesh Hinge Joint Fence
Bottom dense top sparse gradual mesh design, effectively stop lambs and calves from drilling out, practical for mixed livestock breeding farms and roadside farm isolation.
Specifications
Height: 1.2m, Length: 50m
Mesh: Gradual opening
Stay spacing: 150mm / 200mm
Galvanized anti-rust treatment
Easy fixing with staples and wooden posts
Usage: Mixed livestock farm, crop field isolation
1.8m×50m Fixed Knot Deer Fence
Extra height anti-escape deer fence, rigid fixed knot structure, high stability, specially designed for deer farm breeding and wild animal isolation protection.
Specifications
Size: 1.8m × 50m
Weave: Fixed knot
Anti-rust grade: Outdoor heavy galvanized
Support: Concrete post, solid strain post
Application: Deer farm enclosure, orchard wildlife isolation
1.5m×100m High Tensile Fixed Knot Fence
High tensile steel wire made pasture fence, high tension strength, long service life, fit for super large ranch, horse farm and long-distance continuous fence engineering.
Specifications
Material: High tensile galvanized steel wire
Size: 1.5m × 100m
Customization: Custom height, length, wire diameter available
Advantage: Tension resistant, long outdoor service life
Usage: Large ranch, horse pasture, long-distance farm fence
0.8m×50m Light Duty Hinge Joint Fence
Light type low-height galvanized fence, economical and practical, used for temporary pasture division, small sheep fold and garden orchard simple isolation.
Specifications
Height: 0.8m, Length: 50m
Light weight, easy carrying and laying
Ordinary hot dipped galvanized
Scope: Temporary partition, small breeding area, garden boundary
Not suitable for deer and large cattle intensive breeding
