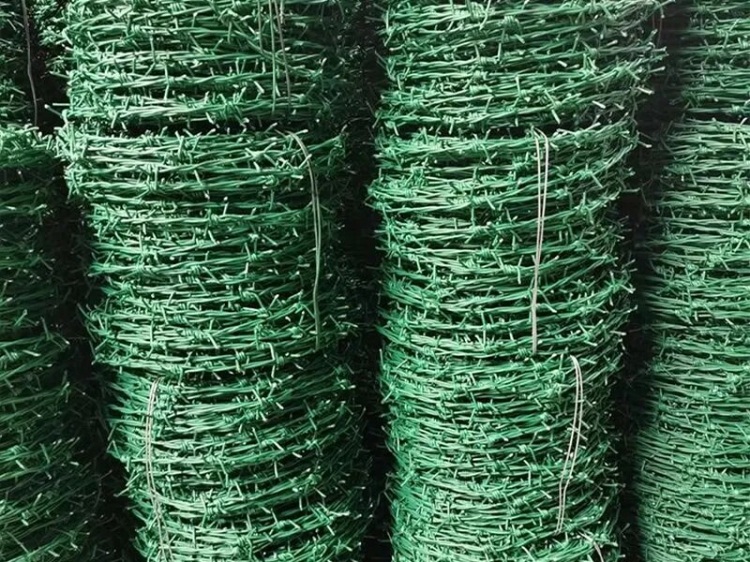

PVC Coated Barbed Wire
Model: PVC Coated Barbed Wire Anti Climb Security Fence W
Category: Automatic/Industrial Machines & Equipments / Castings / Sintered Powder Metal Parts
Characteristics
PVC coated barbed wire is made of hot-dip galvanized steel wire covered with durable PVC plastic layer. It owns excellent anti-rust, anti-aging and sun-proof performance, much longer service life than common galvanized barbed wire. Main types include single twist and double twist styles, with customizable wire gauge, barb spacing and roll length. Common colors are green, black, dark green and grey.
PVC Coated Barbed Wire is a fencing wire made from galvanized steel wire with an outer PVC coating. It is used for farm boundaries, livestock fencing, garden fencing, industrial perimeters, and security fence tops. The PVC layer adds color and helps reduce direct exposure of the steel wire to rain and outdoor conditions. Common colors include green, black, blue, and grey. The wire is usually supplied in coils and installed with fence posts, tension wire, clips, or staples. PVC Coated Barbed Wire is available in different wire gauges, barb spacing, coil lengths, and coating thicknesses for general fencing projects.
Specifications
Specifications
Base Wire Material: Galvanized steel wire or hot-dipped galvanized steel wire before PVC coating.
Wire Diameter: Common inner wire diameters include 1.6mm, 1.8mm, 2.0mm, 2.2mm, and 2.5mm. Outer diameter after PVC coating is usually larger, such as 2.4mm, 2.8mm, 3.0mm, or 3.5mm.
Barb Wire Diameter: Common barb wire diameter is 1.5mm to 2.0mm before coating, depending on the main wire specification.
Barb Spacing: Common spacing includes 75mm, 100mm, 125mm, and 150mm. Closer spacing gives more barbs per meter.
Twist Type: Single twist or double twist. Double twist is commonly used for stable fencing coils.
Coil Length: Common coil lengths include 50m, 100m, 200m, and 250m.
Coil Weight: Usually supplied by coil weight or length. Common coil weights include 10kg, 20kg, 25kg, and 50kg depending on wire size and packing method.
PVC Coating Color: Green, black, grey, blue, or custom color by order quantity.
Surface Finish: PVC coated over galvanized wire. For outdoor use, check coating adhesion and galvanized layer before production.
Packing: Wrapped coil, plastic film, woven bag, carton, pallet, or custom export packing.
Installation Method: Fixed to wooden posts, steel posts, concrete posts, chain link fences, welded mesh fences, or wall-top brackets.
Application
Farm and Livestock Fencing
PVC coated barbed fencing wire is used for farm boundaries, pasture divisions, cattle fencing, sheep fencing, and rural land marking.
Garden and Property Boundary
Green PVC barbed wire is often used around gardens, orchards, private land, and residential boundaries where a colored finish is preferred.
Industrial Perimeter Fence
PVC coated security barbed wire can be installed on top of chain link fences, welded mesh fences, and boundary walls around factories, storage yards, and utility areas.
Roadside and Temporary Fencing
Barbed wire coils are used for roadside protection, construction site boundaries, temporary enclosures, and restricted access lines.
Green PVC Coated Barbed Wire – 2.0/3.0mm, 100m Coil
Green PVC Coated Barbed Wire with 2.0mm inner wire and 3.0mm outer diameter is used for farm fencing, garden boundaries, and general perimeter protection. Supplied in 100m coils for post-and-wire installation.
Specifications
Base Wire: Galvanized steel wire
Inner Wire Diameter: 2.0mm
Outer Diameter After PVC Coating: 3.0mm
Barb Spacing: 100mm or 125mm
Twist Type: Double twist
Coil Length: 100m
Color: Green
Packing: Wrapped coil or woven bag
Applications
Farm boundary fencing and pasture division.
Garden, orchard, and private land fencing.
Fence top installation on chain link or welded mesh fences.
Black PVC Coated Barbed Wire – 1.8/2.8mm, 200m Coil
Black PVC Coated Barbed Wire with 1.8mm galvanized core and 2.8mm coated diameter is supplied in 200m coils. It is used for industrial boundaries, storage yards, and wall-top fence extensions.
Specifications
Base Wire: Galvanized steel before coating
Inner Wire Diameter: 1.8mm
Outer Diameter After PVC Coating: 2.8mm
Barb Wire Diameter: About 1.5mm-1.8mm before coating
Barb Spacing: 100mm or 150mm
Twist Type: Double twist
Coil Length: 200m
Color: Black
Applications
Industrial perimeter fence top.
Warehouse and storage yard boundaries.
Temporary restricted access lines.
