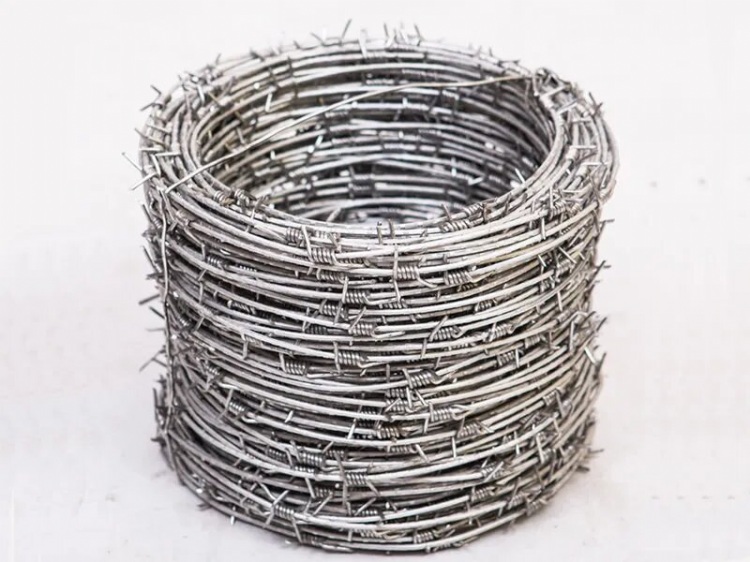

Galvanized Barbed Wire
Model: Hot Dipped Galvanized Barbed Wire 1.6mm-2.5mm for
Category: Automatic/Industrial Machines & Equipments / Castings / Sintered Powder Metal Parts
Characteristics
Galvanized barbed wire is made of low carbon steel wire with hot dipped or electro galvanized anti-rust treatment. It features firm twisting structure, neat sharp barbs and stable tensile performance. Available in single twist and double twist types, complete specifications cover wire diameter, barb spacing, coil length and weight. It is cost-effective, easy to transport and install, suitable for farm pasture enclosure, rural boundary division, garden isolation, factory perimeter protection, wall top anti-climb and roadside isolation projects.
Galvanized Barbed Wire is a fencing wire made from galvanized steel wire twisted with sharp barbs at fixed spacing. It is used for farm fencing, pasture boundaries, property lines, industrial perimeter fences, and fence-top security. The zinc coating helps reduce rust during outdoor use. Common supply forms include coils by length or weight. Buyers usually choose the product by wire diameter, barb spacing, twist type, zinc coating level, coil length, and packing method. Galvanized Barbed Wire can be installed with wooden posts, steel posts, concrete posts, chain link fences, welded mesh fences, or wall-top brackets.
Specifications
Specifications
Material: Low carbon steel wire or high tensile steel wire with galvanized surface treatment.
Galvanizing Type: Electro-galvanized or hot-dipped galvanized. Hot-dipped galvanized wire is commonly selected for outdoor fencing with longer exposure.
Line Wire Diameter: Common diameters include 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, and 2.8mm.
Barb Wire Diameter: Common barb wire diameter ranges from 1.5mm to 2.2mm, depending on the main wire size.
Barb Spacing: Common spacing includes 75mm, 100mm, 125mm, and 150mm.
Twist Type: Single twist or double twist. Double twist is widely used for farm fencing and general perimeter lines.
Coil Length: Common lengths include 50m, 100m, 200m, 250m, and 500m.
Coil Weight: Common coil weights include 10kg, 20kg, 25kg, and 50kg. Weight depends on wire diameter and coil length.
Tensile Grade: Low carbon steel is used for easier handling and general fencing. High tensile wire is used where longer fence spans or stronger tension are required.
Surface Finish: Bright galvanized or dull galvanized finish, depending on zinc coating method and production batch.
Packing: Coil packing with steel tie wire, plastic film, woven bag, carton, pallet, or wooden reel.
Installation Method: Fixed to fence posts with staples, clips, tie wire, strainers, or tension wire.
Farm and Pasture Fencing
Galvanized Barbed Wire is used for cattle fencing, sheep fencing, field boundaries, and pasture division. Wire diameter and tension level should match the livestock type and post spacing.
Industrial Perimeter Fence
Galvanized barbed fencing wire can be installed on top of chain link fence, welded mesh fence, palisade fence, or boundary walls around factories, warehouses, and storage yards.
Rural Road and Land Boundary
Barbed wire coils are used for marking land limits, roadside boundaries, railway side fencing, and remote property lines.
Temporary Site Fencing
Galvanized security barbed wire can be used for construction sites, storage areas, and temporary restricted zones when fixed to posts or existing fences.
Galvanized Barbed Wire – 2.0mm, 100m Coil, 100mm Barb Spacing
Galvanized Barbed Wire 2.0mm with 100mm barb spacing is used for farm boundaries, field fencing, and fence-top security. It is supplied in 100m coils for post-and-wire installation.
Specifications
Material: Galvanized low carbon steel wire
Line Wire Diameter: 2.0mm
Barb Wire Diameter: About 1.6mm-1.8mm
Barb Spacing: 100mm
Twist Type: Double twist
Coil Length: 100m
Surface Treatment: Electro-galvanized or hot-dipped galvanized
Packing: Coil with steel tie wire or woven bag
Applications
Farm boundary fencing and pasture division; Fence top installation on chain link or welded mesh fences; Rural property lines and field separation.
Hot-Dipped Galvanized Barbed Wire – 2.5mm, 200m Coil
Hot-dipped Galvanized Barbed Wire 2.5mm is used for outdoor fence lines, livestock areas, and industrial perimeters. The 200m coil is suitable for long boundary runs and post-supported fencing.
Specifications
Material: Low carbon steel wire
Line Wire Diameter: 2.5mm
Barb Wire Diameter: About 2.0mm
Barb Spacing: 100mm or 125mm
Twist Type: Double twist
Coil Length: 200m
Galvanizing Type: Hot-dipped galvanized
Packing: Woven bag, pallet, or wooden reel
Applications
Cattle fence lines and pasture boundaries; Industrial perimeter fence top; Remote land boundary and roadside fencing.
