Cutting Machine
Model: MS-1220
Category: Machine Tools / Single & Special Purpose Machines / Cutting Machines for Metalworking
Characteristics

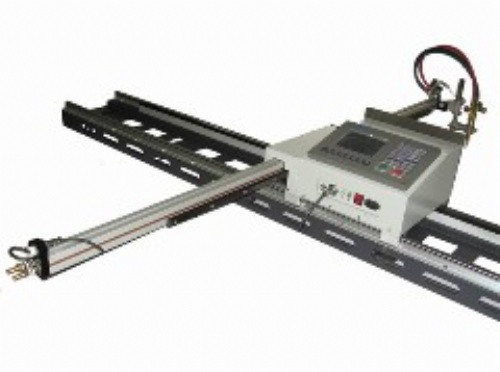

CNC Plasma Cutting Machine for metal-start shaphon Brand
Portable CNC plasma cutting machine / CNC flame cutting machine is used for cutting metal plate, cut machine, such as steel plate. Faceful man-machine conversation.
The beam can be easily disassembled, easy for packing and shipment. Sealing perfect, dust-proof.,light, smart and portable.
Cutting width:1200mm
Cutting length:2000mm
Effective cutting width: 0-1200mm
Effective cutting length: 0-2000mm
Effective cutting thickness:Flame cutting 6-150 mm
Plasma cutting0.1-20mm (Up to the plasma power)
Parameter
Input voltage: 220V
Gas depression: Max0.1Mpa
Power frequency: 50HZ
Oxygen deprission:Max1.5Mpa
Rated power: 160W
Cutting type:plasma
Display: 7inch
Total weight: 140Kg
Automatic height controller SH-HC30
Specifications
Input voltage | 220V |
Rated power | 160W |
Power frequency | 50HZ |
CNC control system | SH2012AH-QG |
LCD size | 7’’ color display |
Fuel gas source pressure | Max .0.1Mpa |
Oxygen Source Pressure | Max. 1.5Mpa |
Cutting type | Flame or Plasma |
Max. cutting speed | 0-8m/min |
Cutting thickness for flame | 6-150mm |
Cutting thickness for plasma | 0.1-50mm(according to plasma source) |
Fuel | Propane, Acetylene, Methane |
