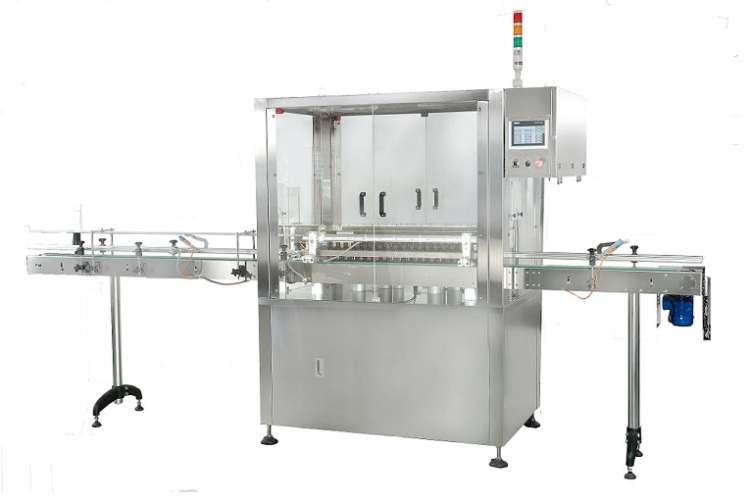

Air wash bottle cleaner
Model: RH-600
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bottle Washers
Characteristics
1. Application : Available for plastic and glass bottles wash fields.
2. Stainless steel machine construction , meet cGMP regulations.
- RUEI HANN MACHINERY CO., LTD. -
Specifications
1. Power source: : 220V/Single phase , 60 Hz
2. Horse power : Servo motor 400 W (Mitsubishi)
3. 1/4 HP Conveyor motor
4. Power consumption : 2.2 KW
5. Air pressure : 85 psi / 6 kg/cm2
6. Air filtering system : 0.01 micron filter(FESTO , Germany made)
7. Capacity : 55 - 60 bottle / per min.
8. Bottle range : D1 (top) : Ø24.6 - Ø37mm
D2(Bottom) : Ø32.1 - Ø56.5 mm
H : 58 - 200 mm / 2 1/4 - 7 7/8¨:
9. Conveyor : W 115/ 4 1/2¨ x H 915mm / 32 5/8¨
10. HMI : 7¨ touching screen.
11. Electric : PLC controlled system.
12. Machine dimensions : L 3222 x W 1101 x H 1750 (mm)
13. Weight : 600 Kgs. / 1322.8 Lbs.
P.S. Customized machine is welcome.
