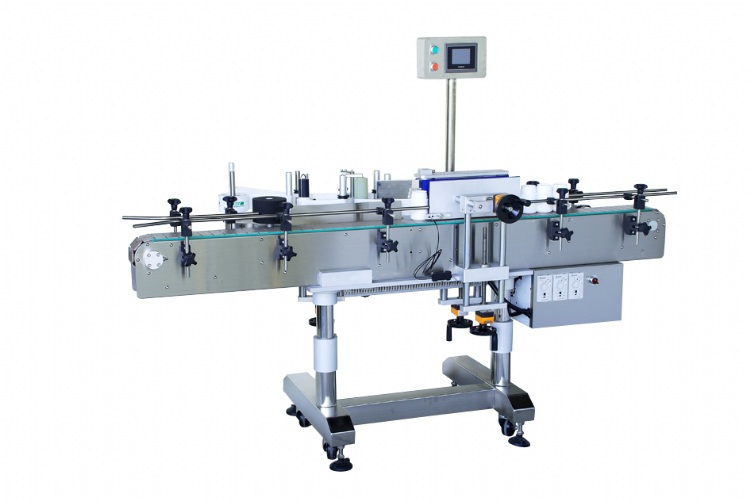

Round labeling machine
Model: RH-700
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Marking and Labeling Machines
Characteristics
1.Application : This machine is available for various round bodies. Such as plastic
bottle、 medicine bottle 、oil bottle 、various jars 、 glass bottle...and so on.
2. PLC control system match HMI is easy to read and operate.
3. Entire machine is constructed of S304 stainless steel and aluminum alloy for rust free
performance.
4. The labeling place、height and angle are adjustable.
5. This machine's functions : Let bottle at correct position、separate bottle、labeling
smooth、counting...and so on.
6. It can connect with other machines for total automatically purpose.
7. The machine can also label two places at one time.
Specifications
1. Electric : PLC control
2. HMI : Touch screen is easily operating.
3. Label speed : 0 - 25 m/min(Adjustable)
4. Label accuracy : ±1 mm
5. Roll inter : 3¨ (Ø 75 mm)
6. Max. roll outer : Ø360 mm
7. Machine dimension : 2015 L x 905 W x 1325 H mm
8. Machine weight : 78 Kgs.(171.96 Lbs.)
9. Power source : 110V /220V , 50/60Hz
P.S. Customized machine is welcome.
