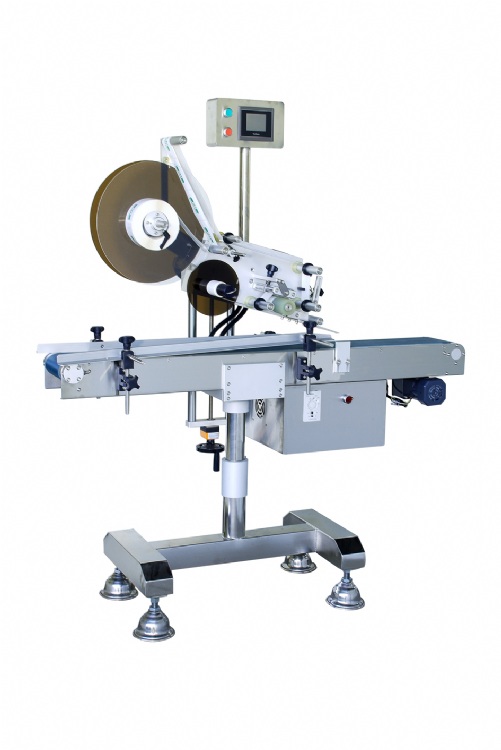

Top labeling machine
Model: RH-500
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Cosmetic Equipments
Characteristics
1. Application: Top labeling machine is available for various flat labels which include food , make up , electronic , record(Video) , CD box , carton...and so on.
2. PLC control system match HMI is easy to read and operate.
3. Entire machine is constructed of S304 stainless steel and aluminum alloy for rust free
performance.
4. The labeling place、 height and angle are adjustable.
Specifications
1. Electric : PLC
2. HMI : Toch screen is easily operating
1. Label speed : 0 - 25 m/min(Adjustable)
2. Label accuracy : ±1mm
3. Inter sticker reel : 3¨ (Ø 75 mm)
4. Max. outer sticker reel : Ø360 mm
5. Standard labeling height : Below 130 mm
6. Machine dimension : 1405 L x 705 W x 1445 H mm
7. Machine weight : 68 Kgs.(149.91 Lbs.)
8. Power source : 110V /220V , 50/60Hz
P.S. Customized machine is welcome.
